When dealing with a damaged KTM motorcycle ECU, many technicians worry about complex programming or risky disassembly. With OBDSTAR G3, you can complete ECU cloning quickly and safely using bench mode—no need to open the sealed ECU.
This guide explains how to use OBDSTAR G3 to clone a Bosch MG1CA094 ECU step by step.
For sealed ECUs like MG1CA094, OBDSTAR G3 bench mode is the safest and most efficient method.
To perform the cloning process with OBDSTAR G3, prepare:
KeyMaster G3
MP001 programmer
Main cable
Stable 12V power supply
Steps
Step 1: Enter ECU Flasher
Open OBDSTAR G3

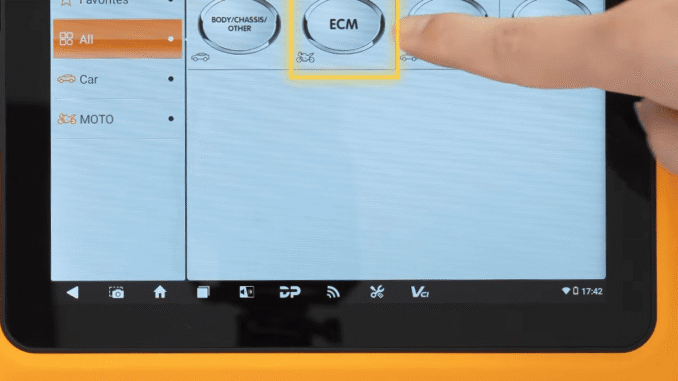

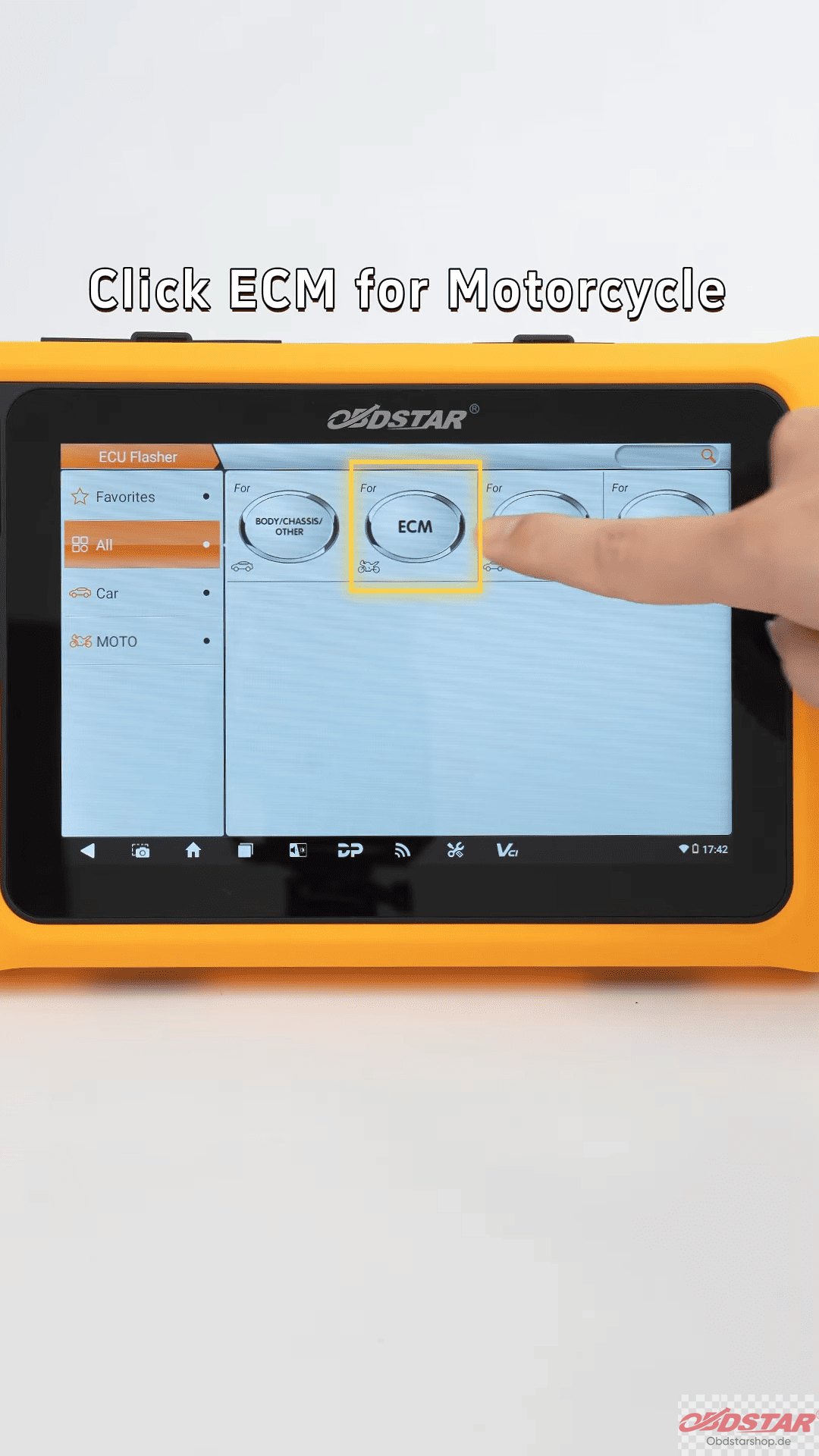

Select ECU Flasher → ECM (Motorcycle)
Choose brand: KTM
Select Bosch MG1CA094 ECU
Step 2: Check Wiring Diagram
Select MP001 pinout
Follow the wiring diagram carefully
Solder wires according to instructions
Connect 12V power supply
Step 3: Read Original ECU Data
Using X300 Classic G3:
Click Connect

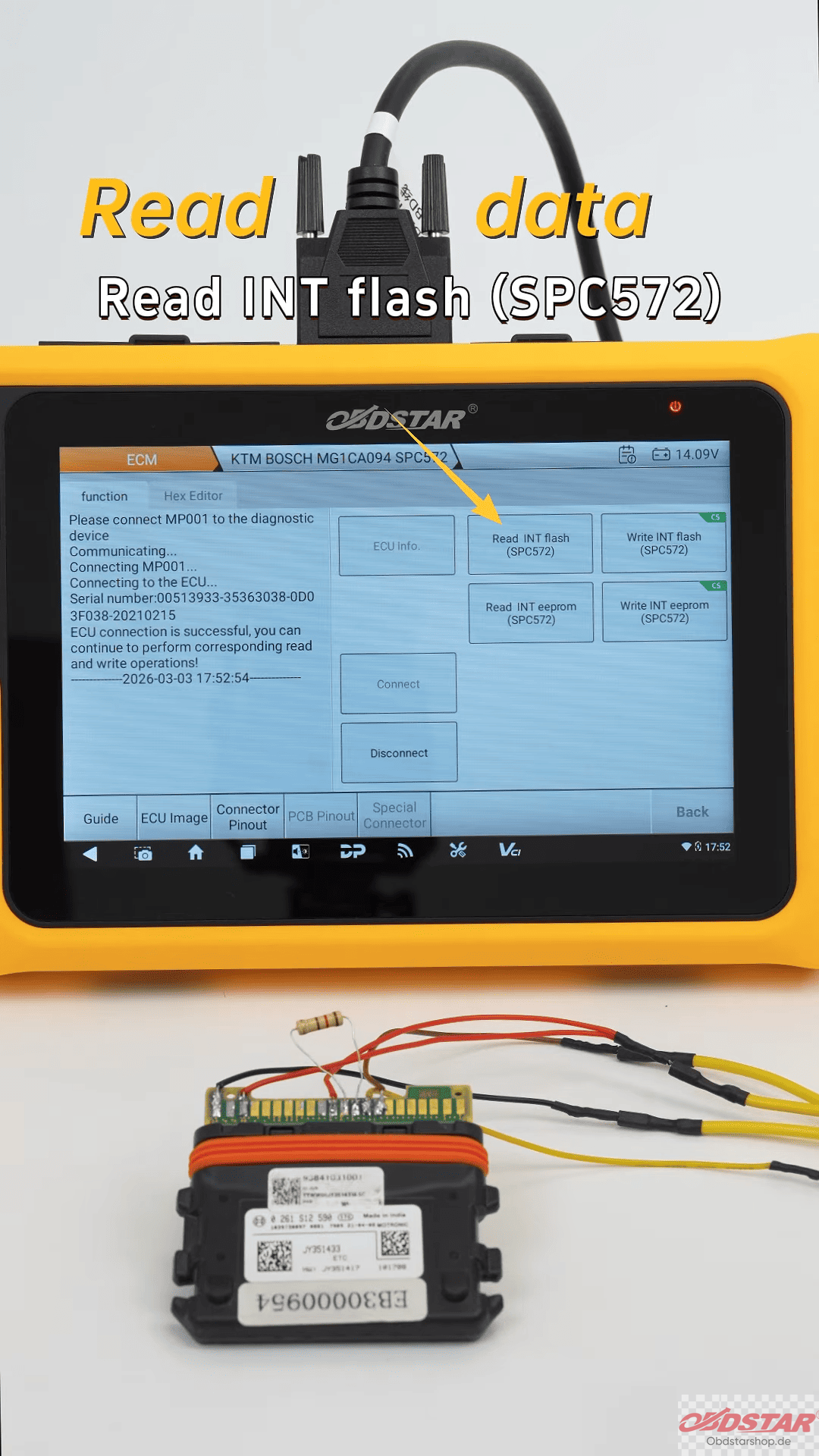

Read Flash data

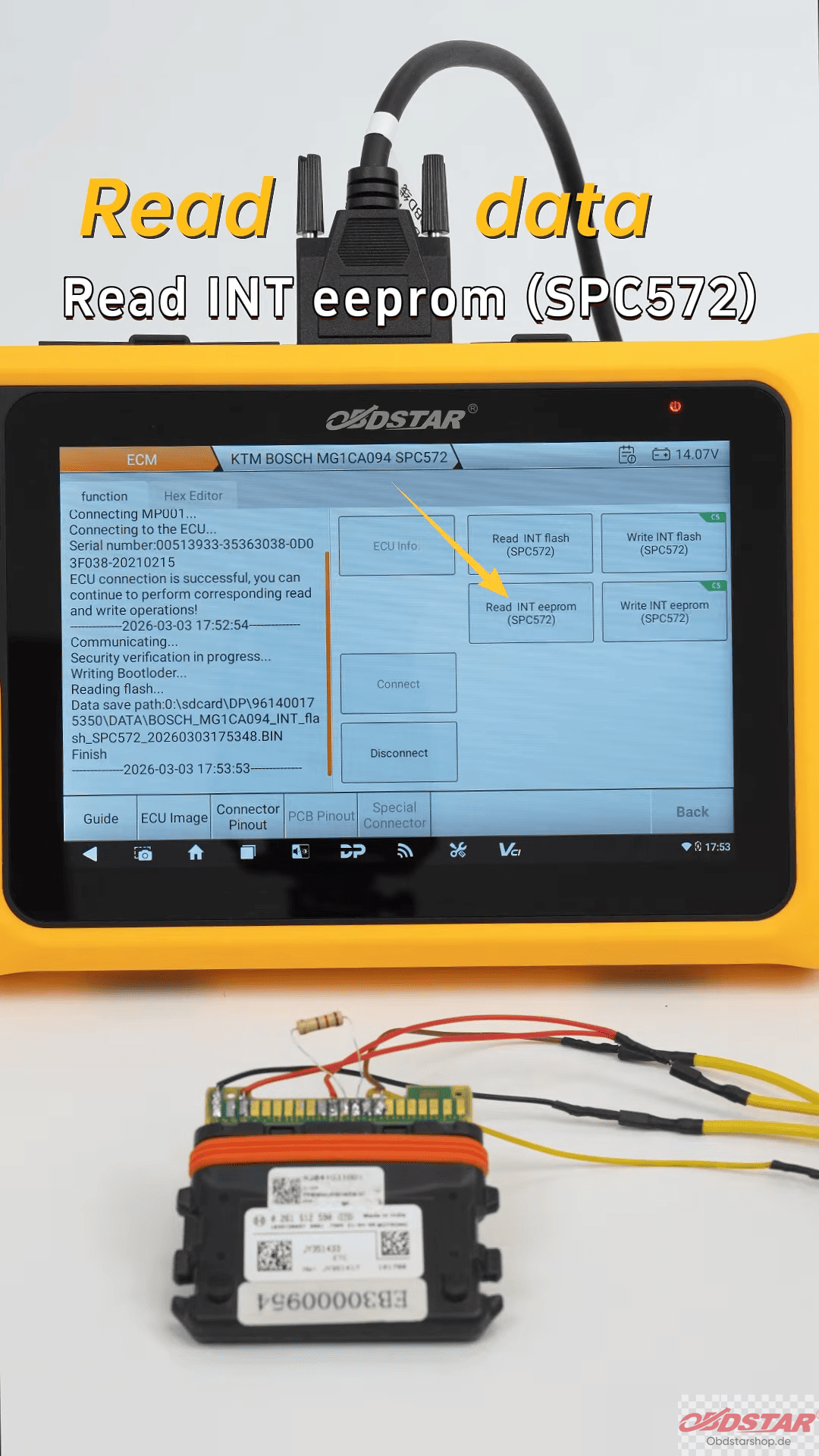

Read EEPROM (EROM) data
Save backup files
Step 4: Write Data to Replacement ECU

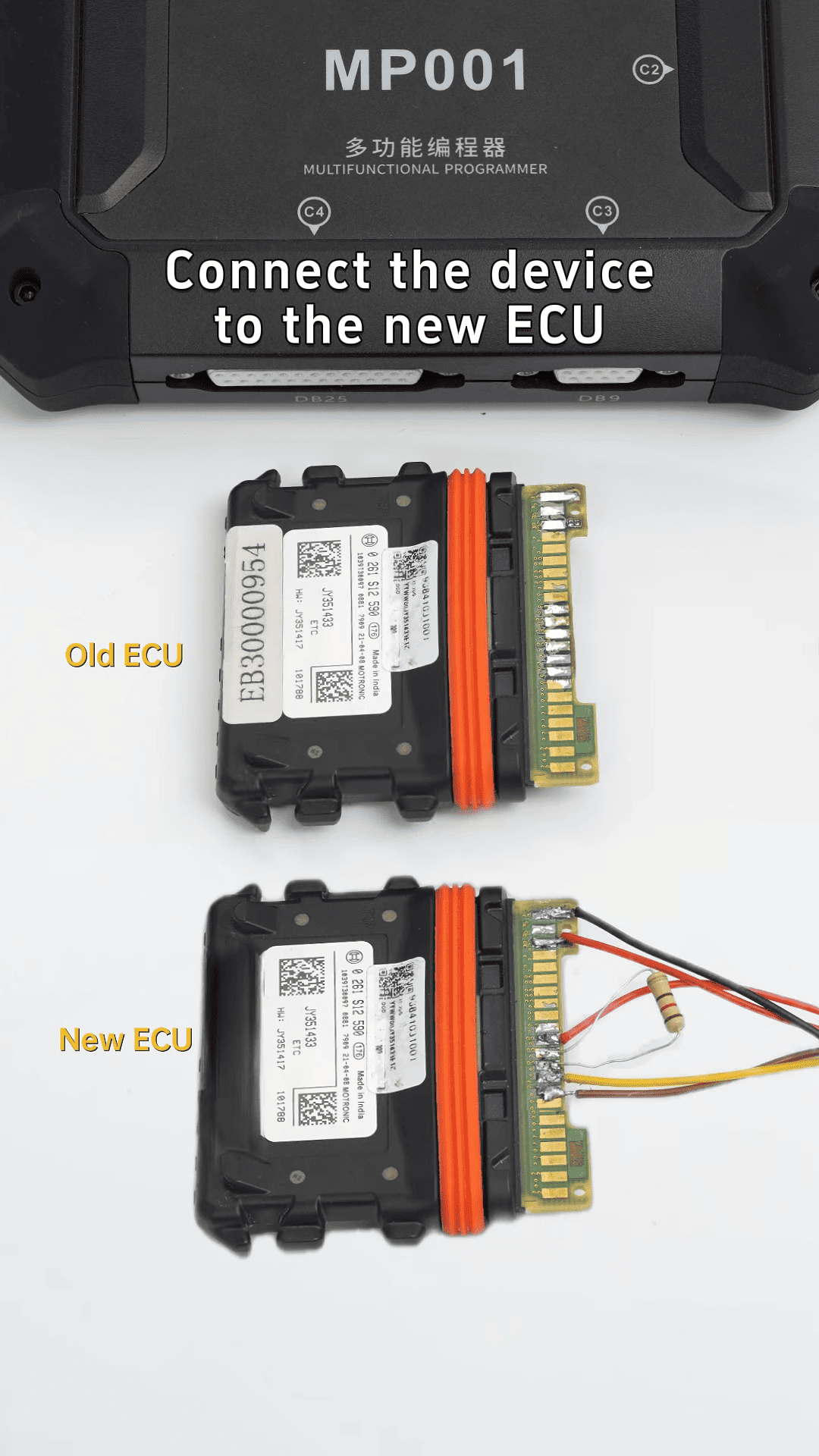

Connect OBDSTAR X300 Classic G3 to the new ECU
Write Flash data (load saved file)
Write EEPROM data
Confirm all operations
Step 5: Install and Test
Install the cloned ECU back into the motorcycle
Clear fault codes
Start the engine
The ECU is now fully cloned using OBDSTAR G3, with no additional programming required.
OBDSTAR G3 full version makes KTM MG1CA094 ECU cloning simple, safe, and efficient. By using bench mode, technicians can avoid risky disassembly and complete the process with a plug-and-play result.
