OBDSTAR G3 provides a powerful solution for encrypted BCM read and write, allowing technicians to perform advanced operations without relying on dealer tools.
In this guide, we demonstrate how to use OBDSTAR X300 Classic G3 to work on a 2021 Alfa Romeo Stelvio BCM, including data reading, cloning, and key programming.

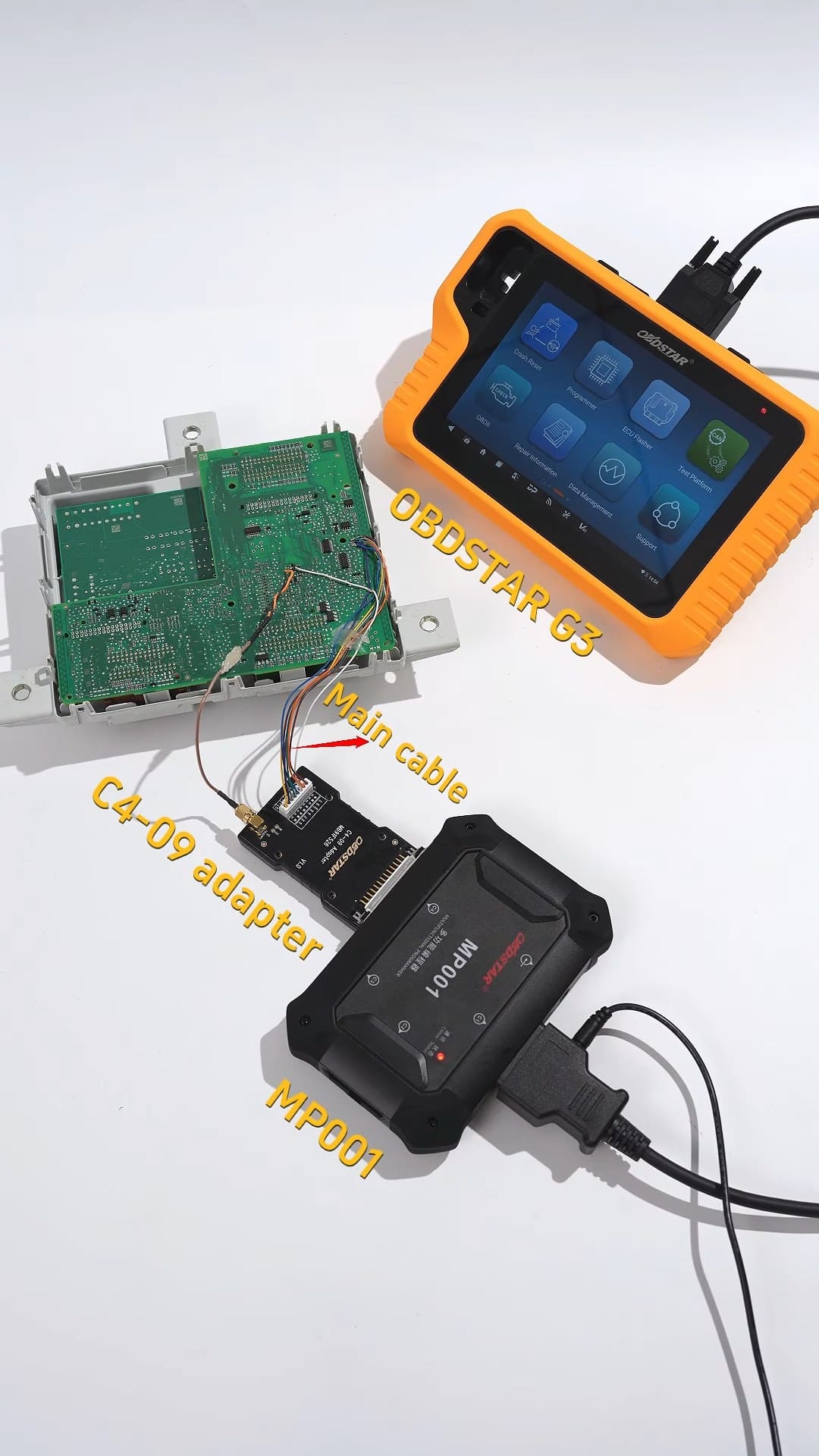

To complete the process using OBDSTAR X300 Classic G3, prepare the following:
OBDSTAR X300 Classic G3
MP001 programmer
Main cable
C4-09 adapter
12V power supply
Step 1 Enter ECU Flasher on OBDSTAR X300 Classic G3
Open KeyMaster G3
Select ECU Flasher → Body / Chassis → Other
Identify BCM model from module label

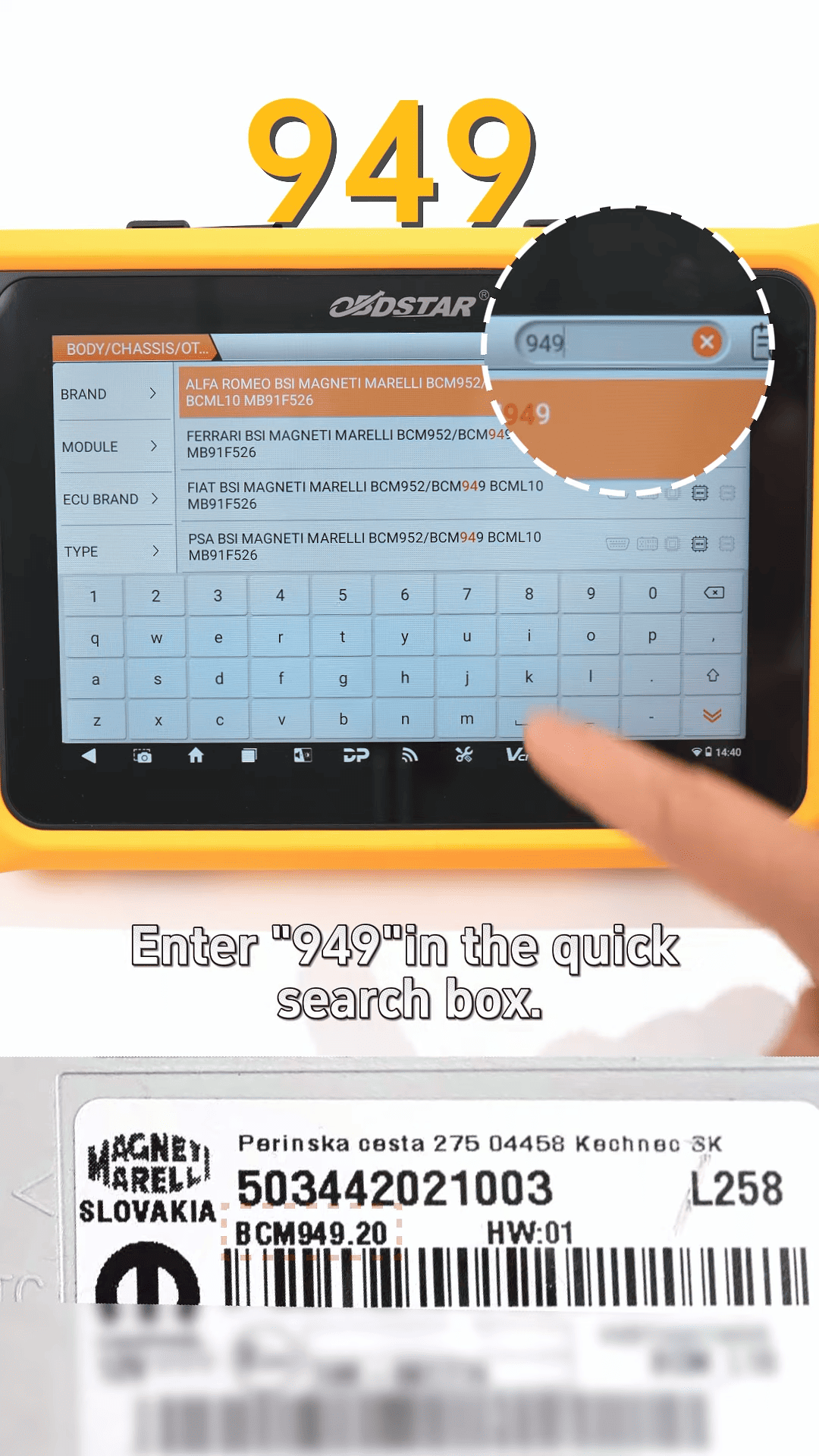

Enter “949” in search and select the correct option
Step 2 Select Mode and Prepare Connection

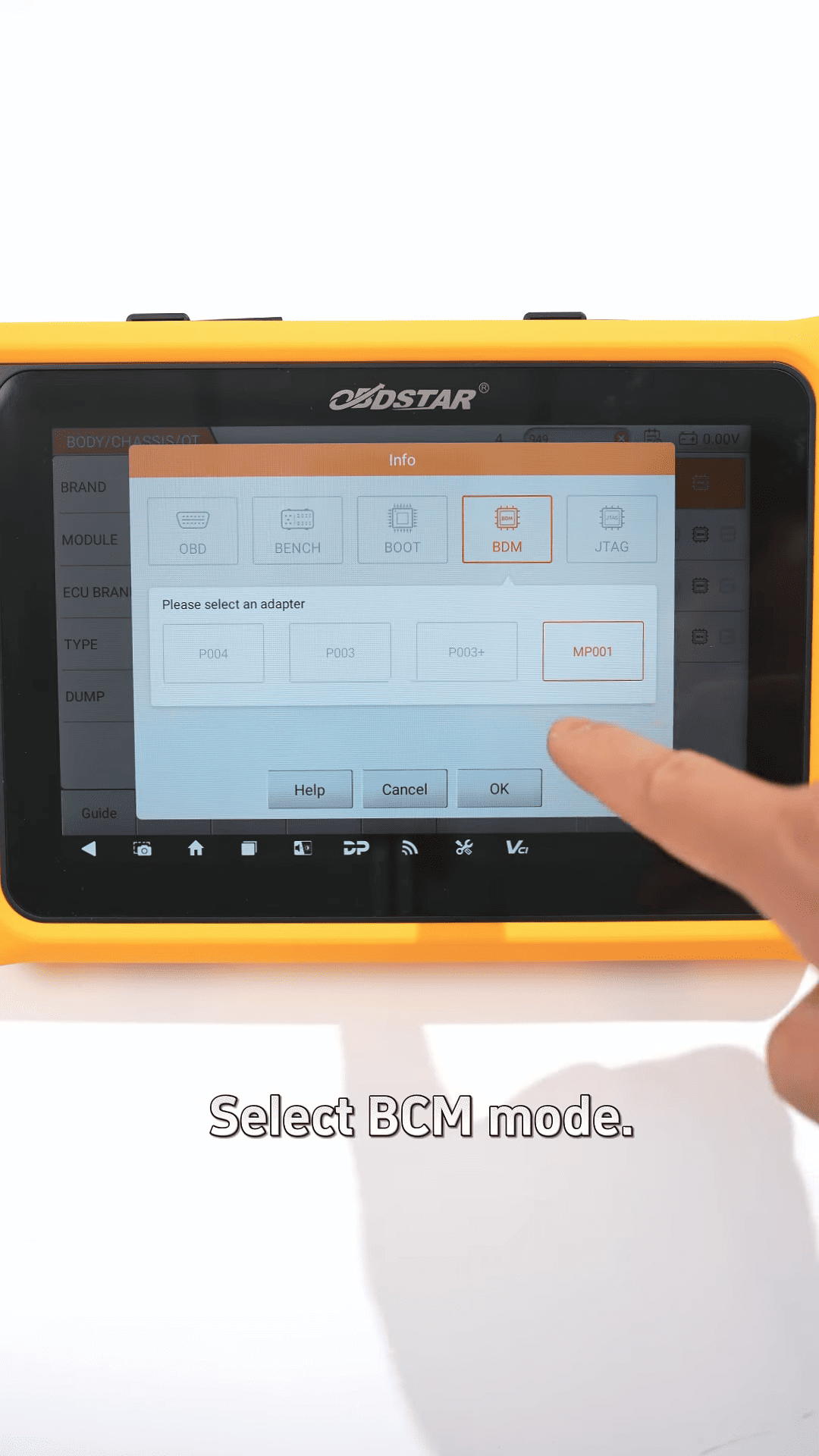

Choose BCM Mode
Ensure device is connected to the internet
Open wiring diagram on the device

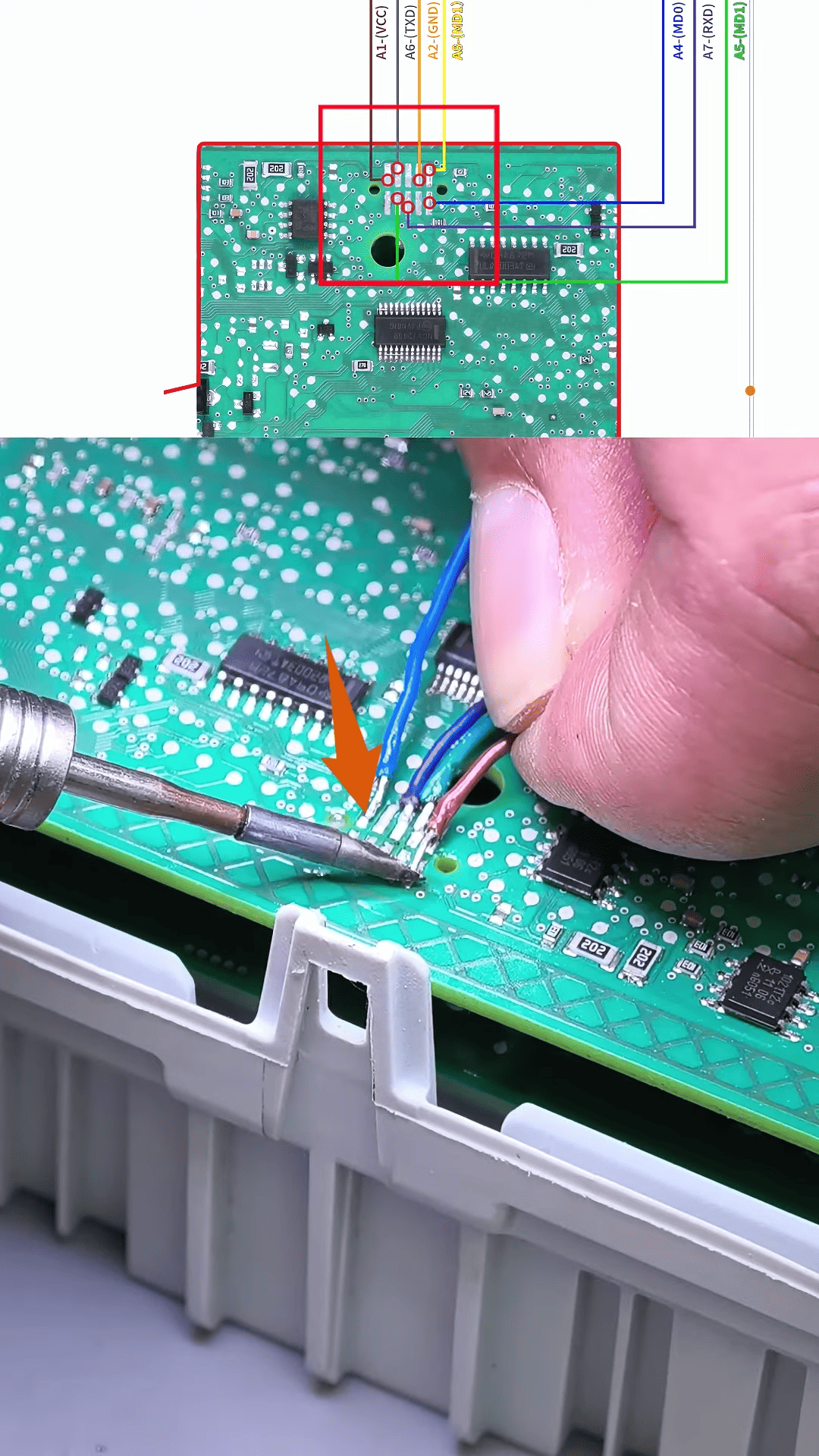

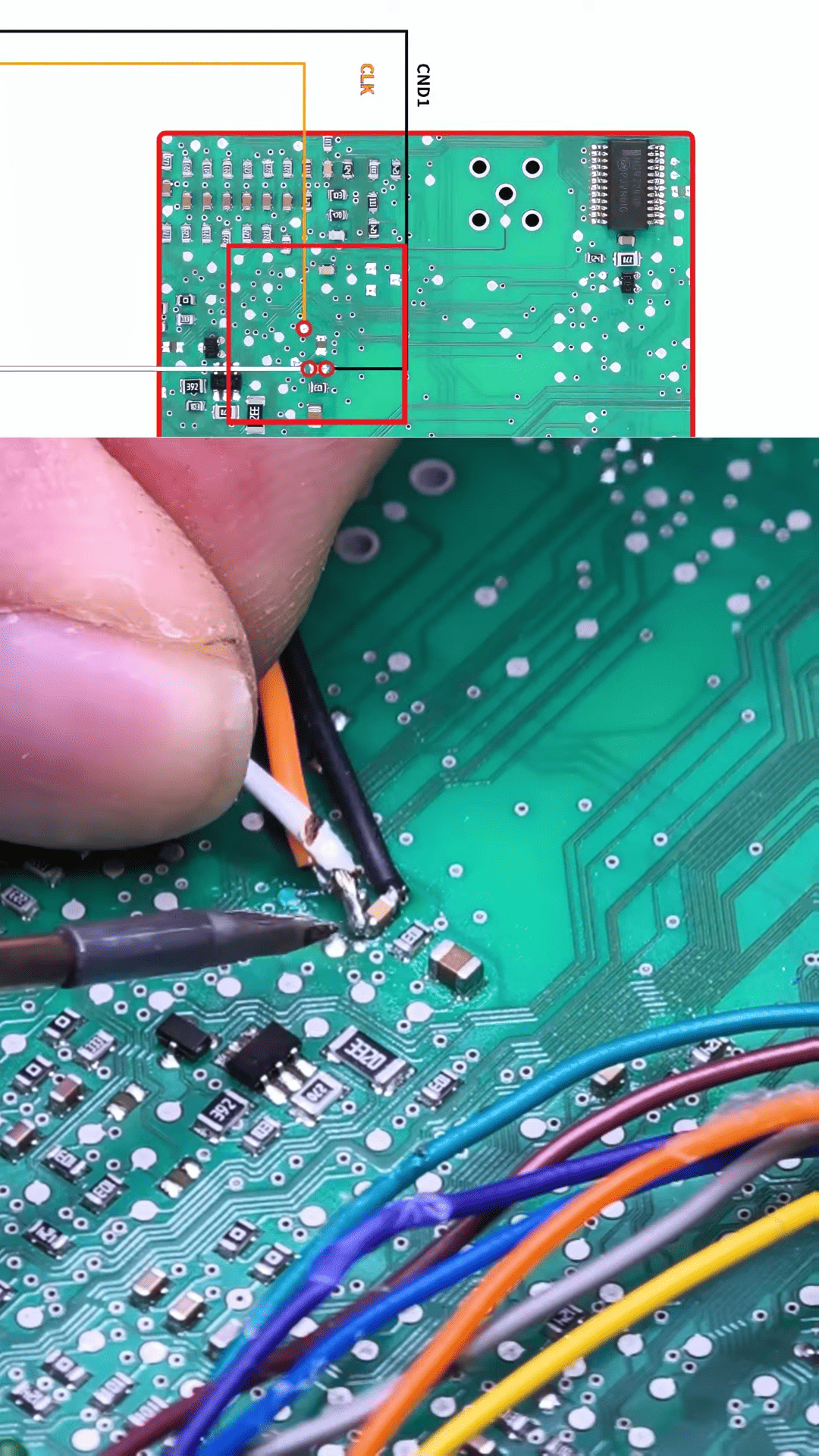

Follow the diagram and solder wires to the BCM board

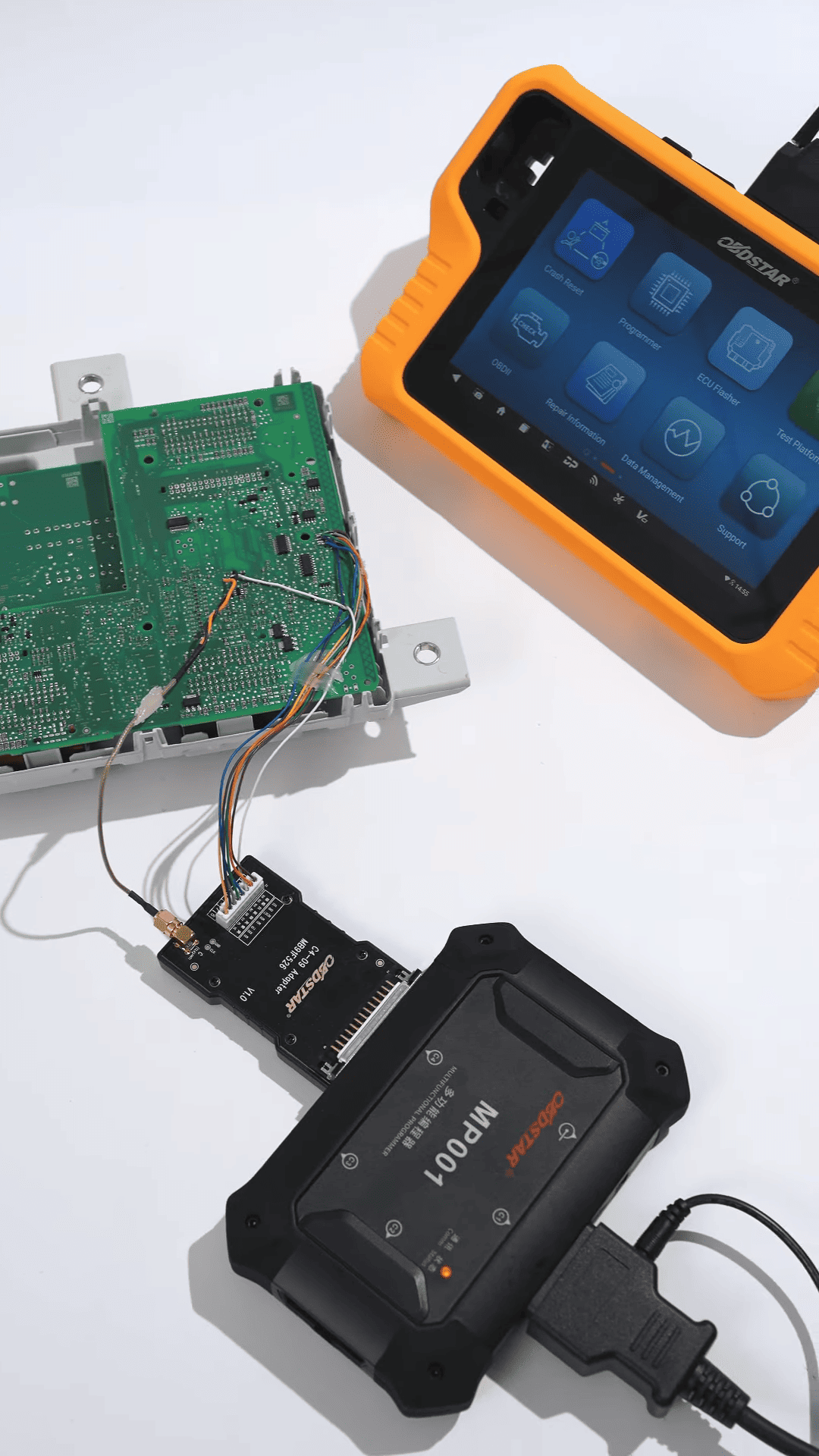

Step 3 Connect Hardware
Connect C409 adapter and MP001
Connect stable 12V power supply
Click Connect on OBDSTAR X300 Classic G3
The device will automatically begin decryption.
Step 4 Read and Save Data
Using X300 Classic G3:
Refresh and save data
Read Flash data
Read EEPROM (EROM) data
Save all files securely
Step 5 Write Data and Clone BCM
After reading is complete:
Write Flash data to replacement BCM
Write EEPROM data
Complete low-cost BCM cloning
The OBDSTAR X300 Classic G3 allows direct cloning without expensive module replacement.
Step 6 Immobilizer Data Decryption and Key Programming
Select Immobilizer Data Decryption
Load EEPROM file
View VIN, PIN code, and key information
Generate new key directly
This completes the key programming process using OBDSTAR X300 Classic G3.
OBDSTAR X300 Classic G3 full version is a versatile tool for advanced BCM operations, including read/write, cloning, and key programming. For technicians working on Alfa Romeo and similar platforms, OBDSTAR X300 Classic G3 offers an efficient and professional solution.
