OBDSTAR C4-10 Adapter Kit: BDM/JTAG Data Read/Write Adapter for Multi-ECU Support

OBDSTAR C4-10 Adapter Kit is a BDM/JTAG data read/write adapter designed to expand ECU programming capabilities for passenger cars, motorcycles, and heavy-duty vehicles.

With the C4-10 Adapter and its included wiring accessories, supported ECUs can be accessed in JTAG or BDM mode for data reading and writing. The adapter is compatible with OBDSTAR X300 CLASSIC G3, DC706, and ECU MASTER.

What Is the OBDSTAR C4-10 Adapter?

The OBDSTAR C4-10 is a dedicated adapter for bench ECU programming. It provides connections for different ECU types and supports a wide range of processors used in passenger-car, motorcycle, and heavy-duty ECUs.

The kit includes

• C4-10 Adapter
• W004 cable
• W005 cable
• W006 cable

Its multi-ECU design makes it suitable for workshops that need to work with different ECU platforms without using a separate adapter for every application.

Supported ECU Types in JTAG Mode

Passenger Car
VGS4-0-NAG2
VGS4-500-NAG2

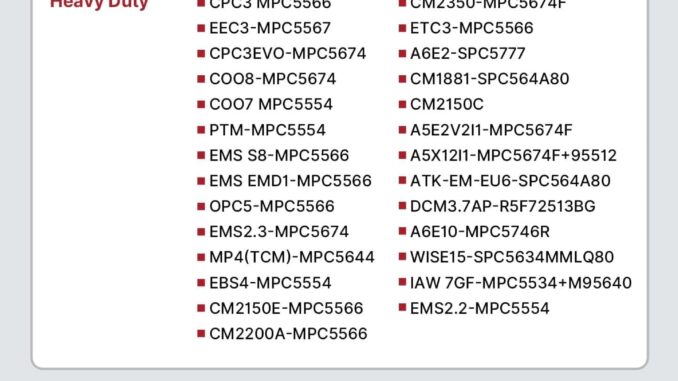

Heavy Duty
CPC3 MPC5566
CPC3EVO-MPC5674
COO8-MPC5674
C007 MPC5554
PTM-MPC5554
EMS S8-MPC5566
OPC5-MPC5566
EMS2.3-MPC5674
MP4(TCM)-MPC5644
EBS4-MPC5554
CM2150E-MPC5566
CM2200A-MPC5566
CM2350-MPC5674F
EEC3-MPC5567
ETC3-MPC5566
A6E2-SPC5777
CM1881-SPC564A80
CM2150C
A5E2V2I1-MPC5674F
A5X12I1-MPC5674F+95512
ATK-EM-EU6-SPC564A80
DCM3.7A-P-R5F72513BG
A6E10-MPC5746R
WISE15-SPC5634MMLQ80
IAW 7GF-MPC5534+M95640
EMS2.2-MPC5554

Supported ECU Types in BDM Mode

Motorcycle
ME9.2-MPC555+DE28F800F3
ME9.7-MPC564+M58BW016DB
MEV9.2-MPC564+M58BW016DB
MS45-MPC555+AM29BL802CB

Heavy Duty
EDC16C7-MPC555
EMS S7-MPC563+S29CD016JB
EBS5-MPC562+S29CD016JB+95640
EDC7C32-MPC562+M58BW016XB+95640
EDC7UC31-MPC562+M58BW016XB+95640
EDC16CP31(CR4)-MPC564+M58BW016DB
EMS2/EMS2 PG
EDC7C3 MPC5556 + 95640
CM850-MPC555+AM29BL162CB

More Heavy-Duty ECU Support Coming Soon

JTAG Upcoming support
CRD2.62-MPC5566+25LC256
CM2180A-MPC5554
DCM3.5-MPC5566
EFI T6-MPC5534
ACM3-SPC564A70
BDM
CM848E-MPC555+AM29BL162CB+AT25640

OBDSTAR C4-10 Adapter Kit extends the ECU programming capabilities of compatible OBDSTAR tools by providing dedicated BDM/JTAG connections for multiple ECU platforms. With coverage ranging from passenger-car transmission ECUs to motorcycle and heavy-duty ECUs, it is a useful adapter for professional ECU data read/write work.
