If you’re working with Italian cars like the 2023 Fiat Ducato, you’ll want to be familiar with the process of cloning the Body Control Module (BCM) and programming keys. In this guide, we walk you through using OBDSTAR G3 to clone the BCM and program keys for this vehicle.
Tools Needed:
KeyMaster G3
MP001 programmer
Main cable
C4-09 adapter
Steps
Step 1: Select ECU Clone
Turn on X300 Clsssic G3 and navigate to the ECU Clone option.
Select Body for the BCM module.
Confirm the selection and proceed to the next step.
Step 2: Search for the Fiat BCM Model

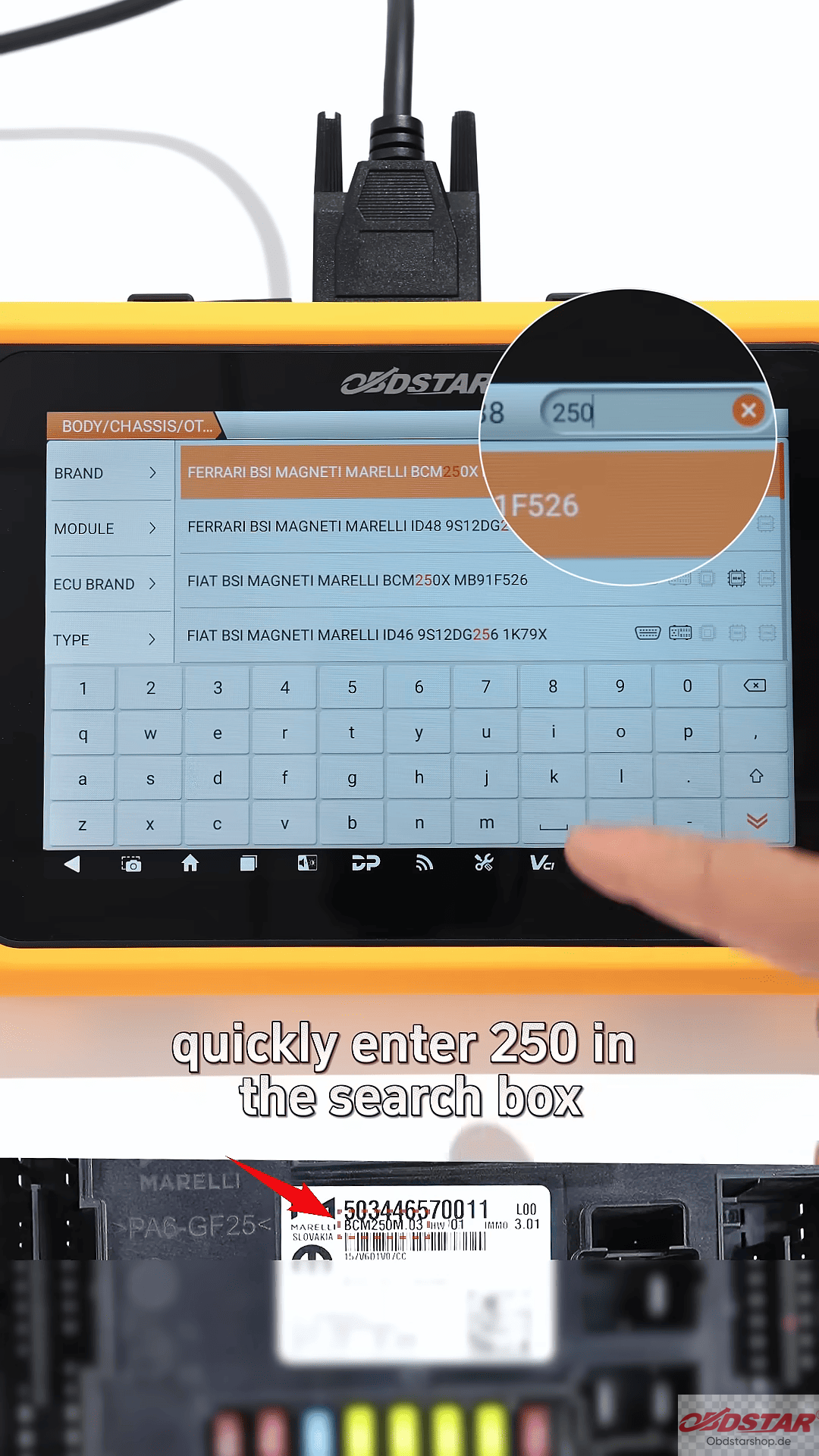

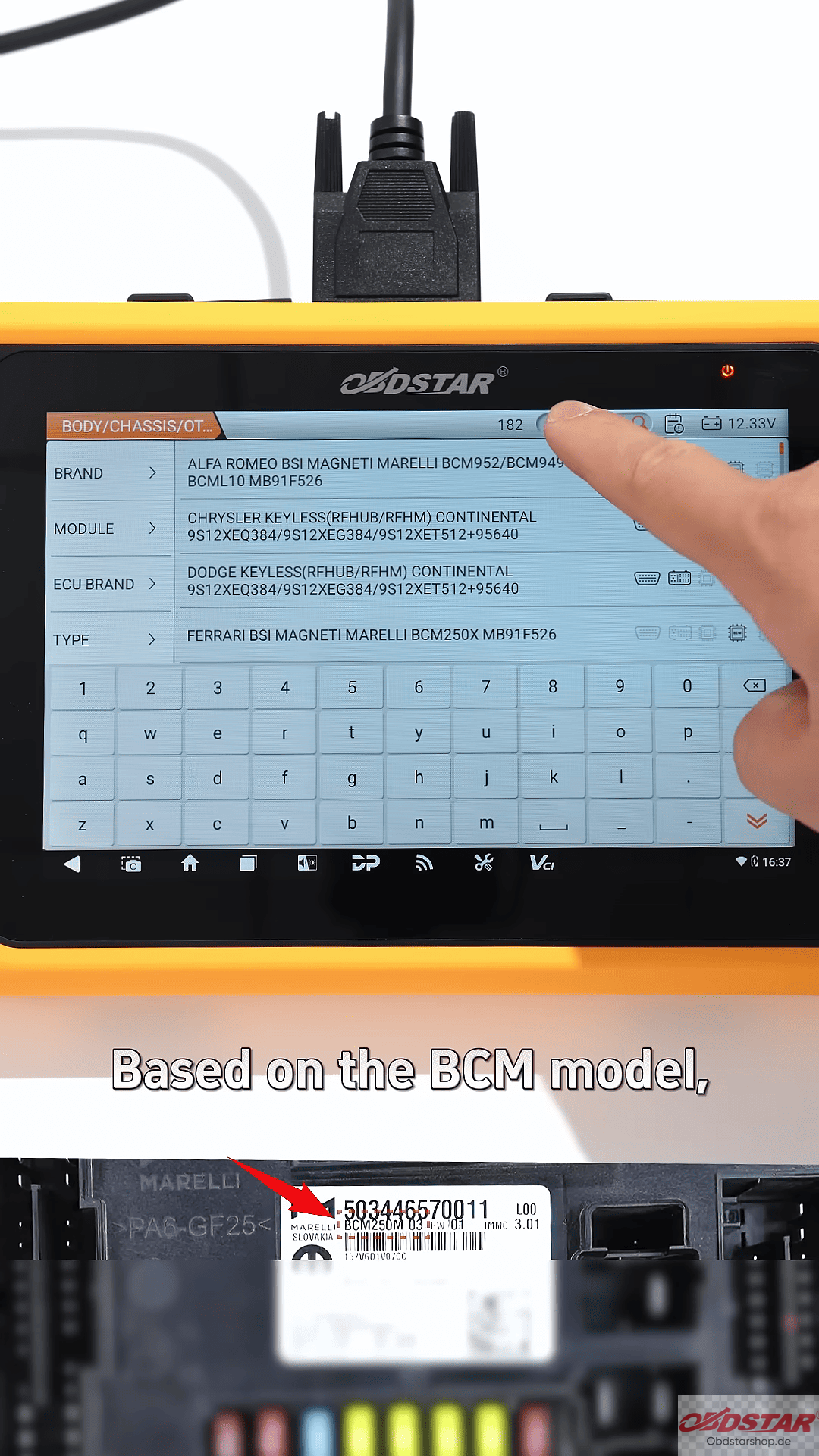

Based on the BCM model, enter 250 in the search box.
Select Fiat from the options.
Tap Start, then confirm to begin the connection.
Step 3: Read the Flash Data
Once the connection is established, select Yes to proceed with reading the flash data.
Wait for the flash data to be successfully read.

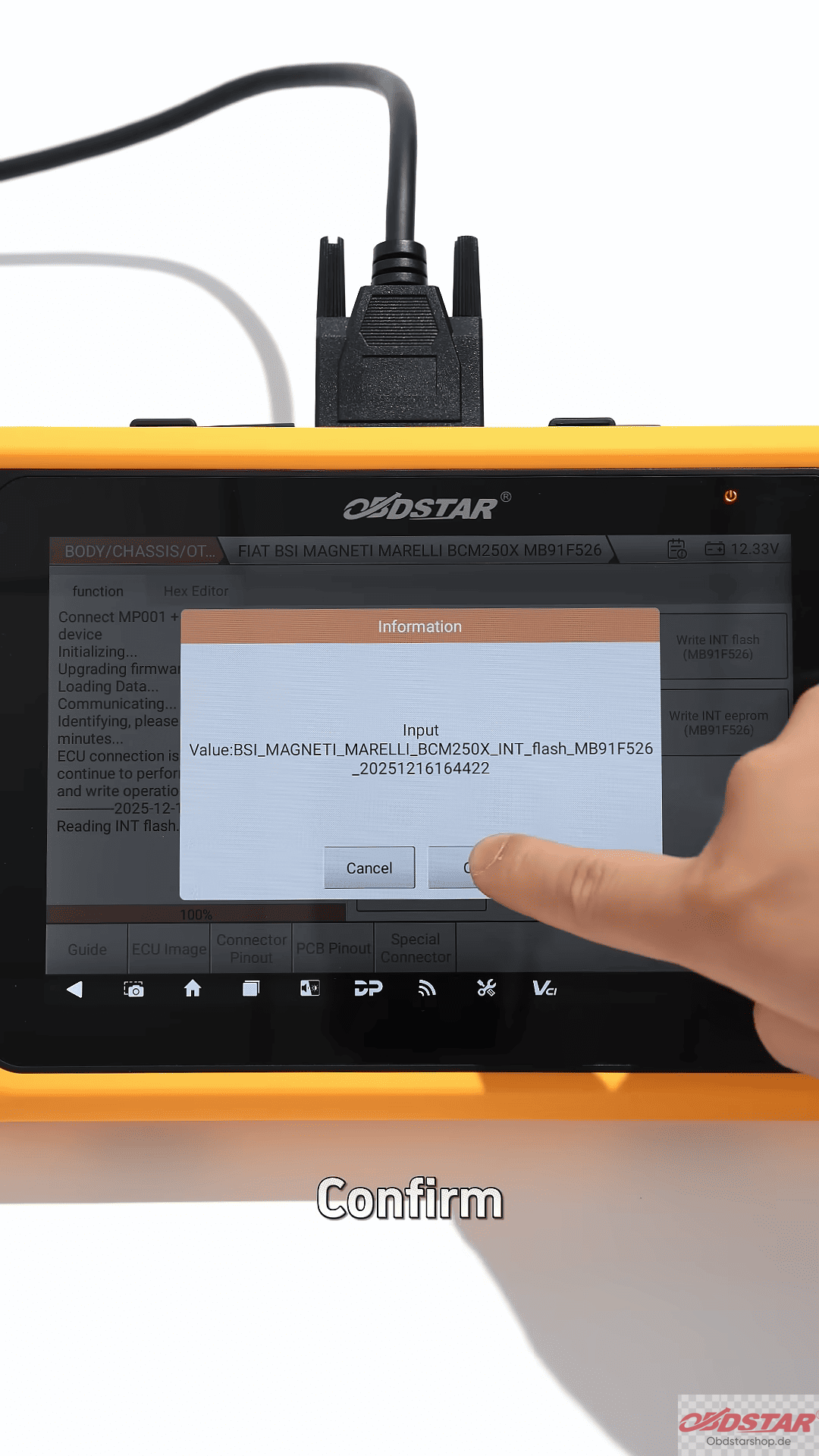

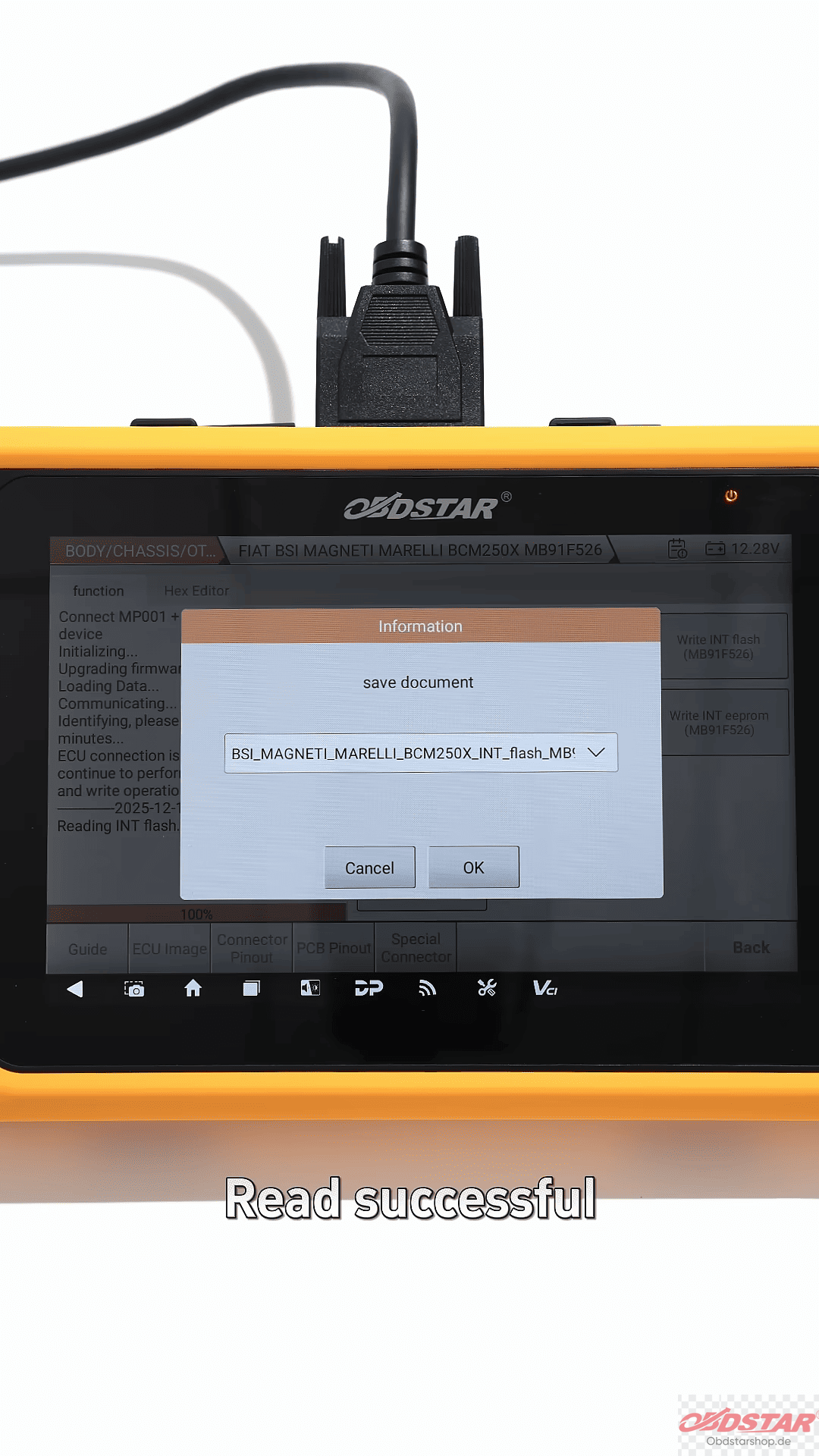

Save the data with the default file name and confirm to proceed.
Step 4: Read Input Data

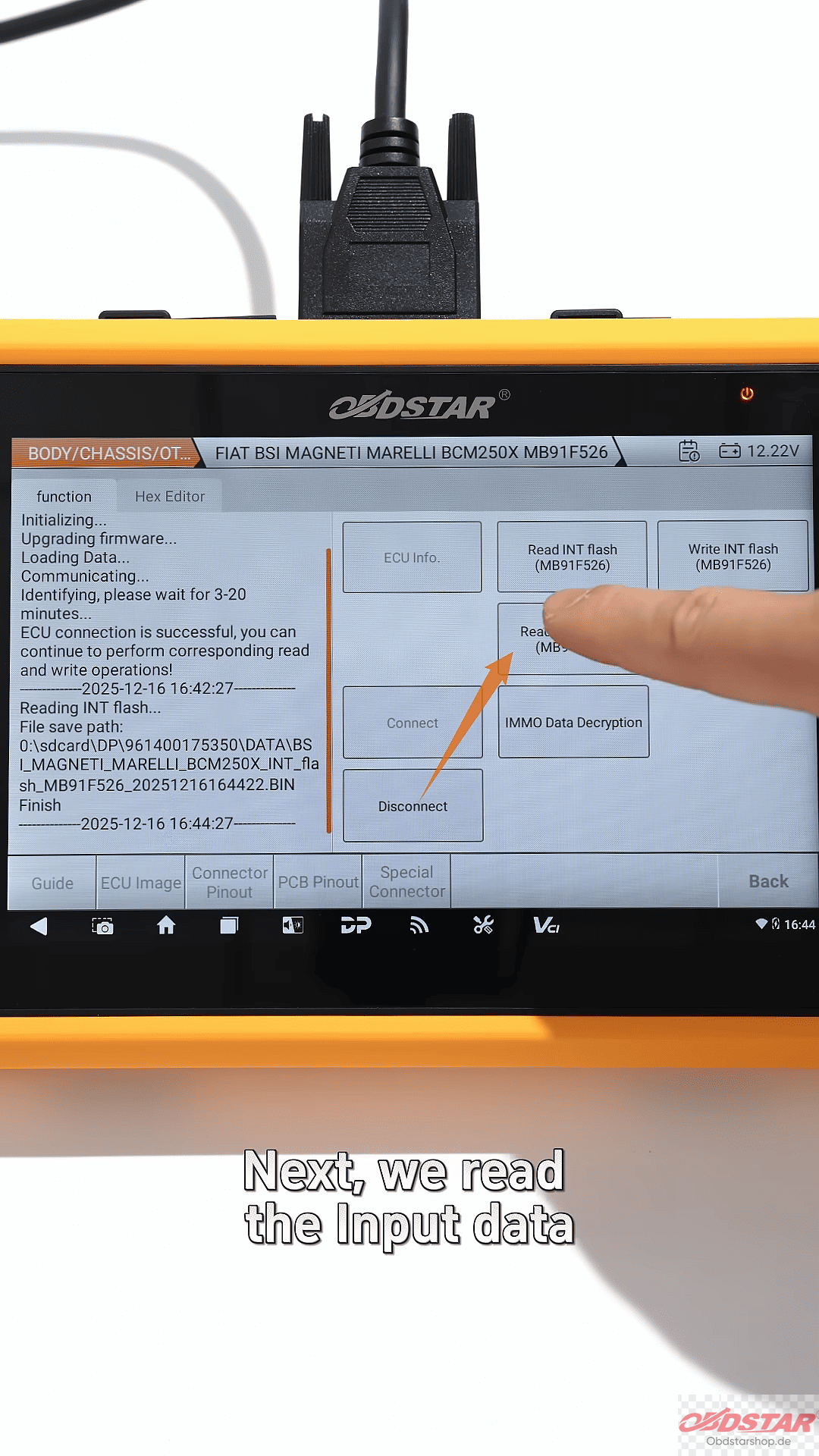

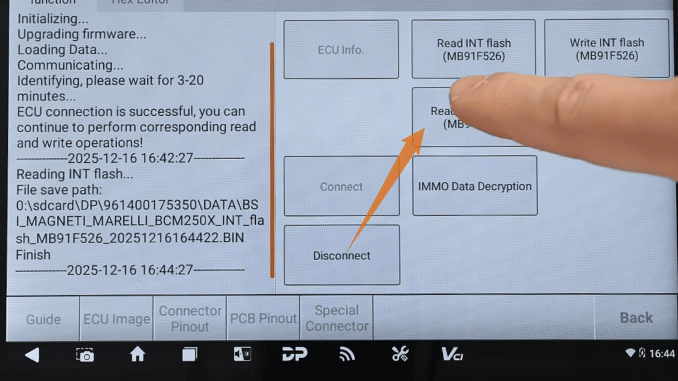

After reading the flash data, proceed to read the input data.
Wait for the input data to be successfully read.
Save the input data with the default file name and confirm to move forward.
Step 5: Write Data to the Used Replacement BCM
After reading both flash and input data, navigate to the menu on the right-hand side.

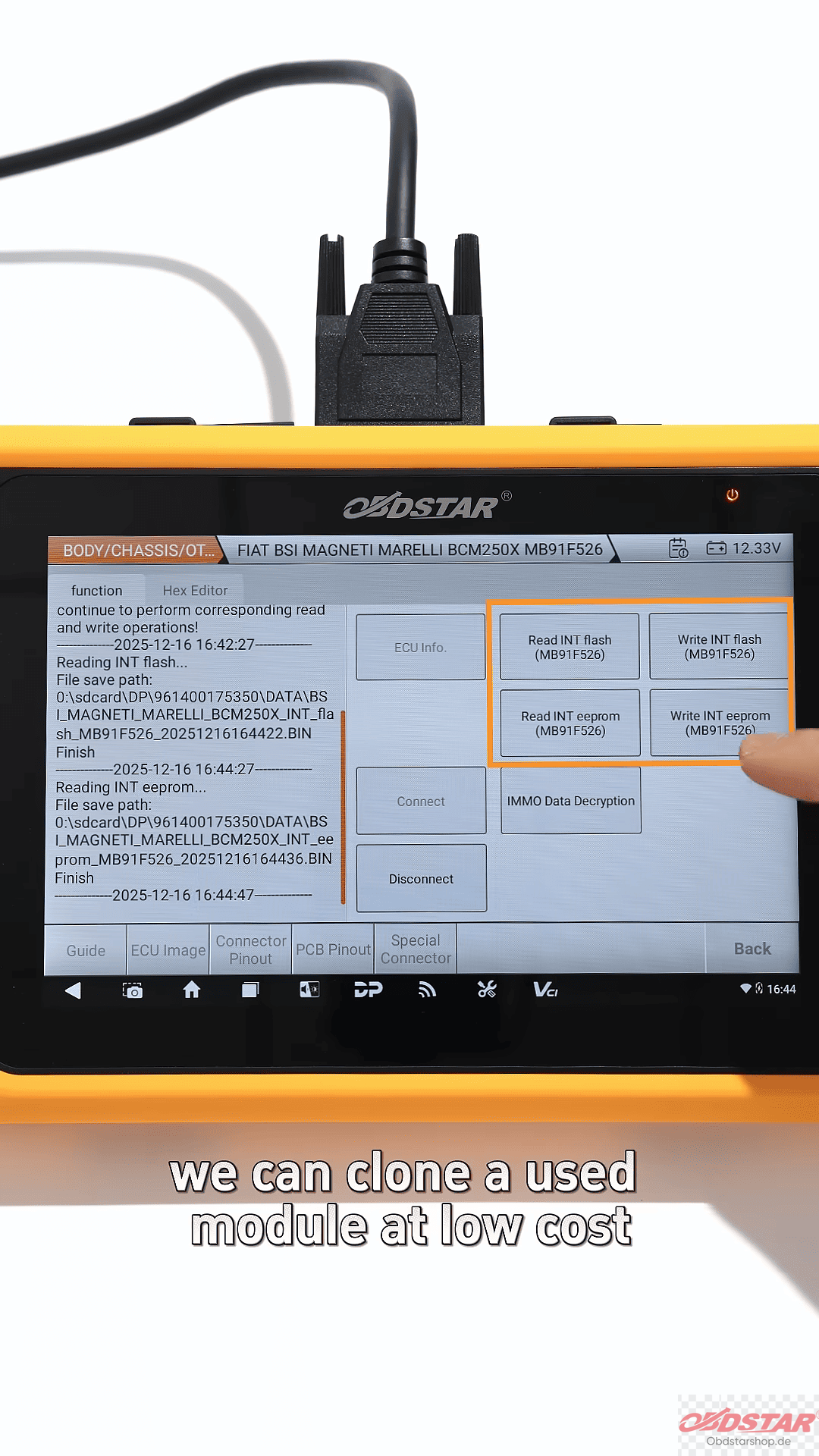

Select Write Flash and Write Input Data to begin writing the extracted data into the replacement BCM module.
Once the data is written successfully, the BCM cloning is complete.
Step 6: Immobilizer Data Decryption for Key Programming

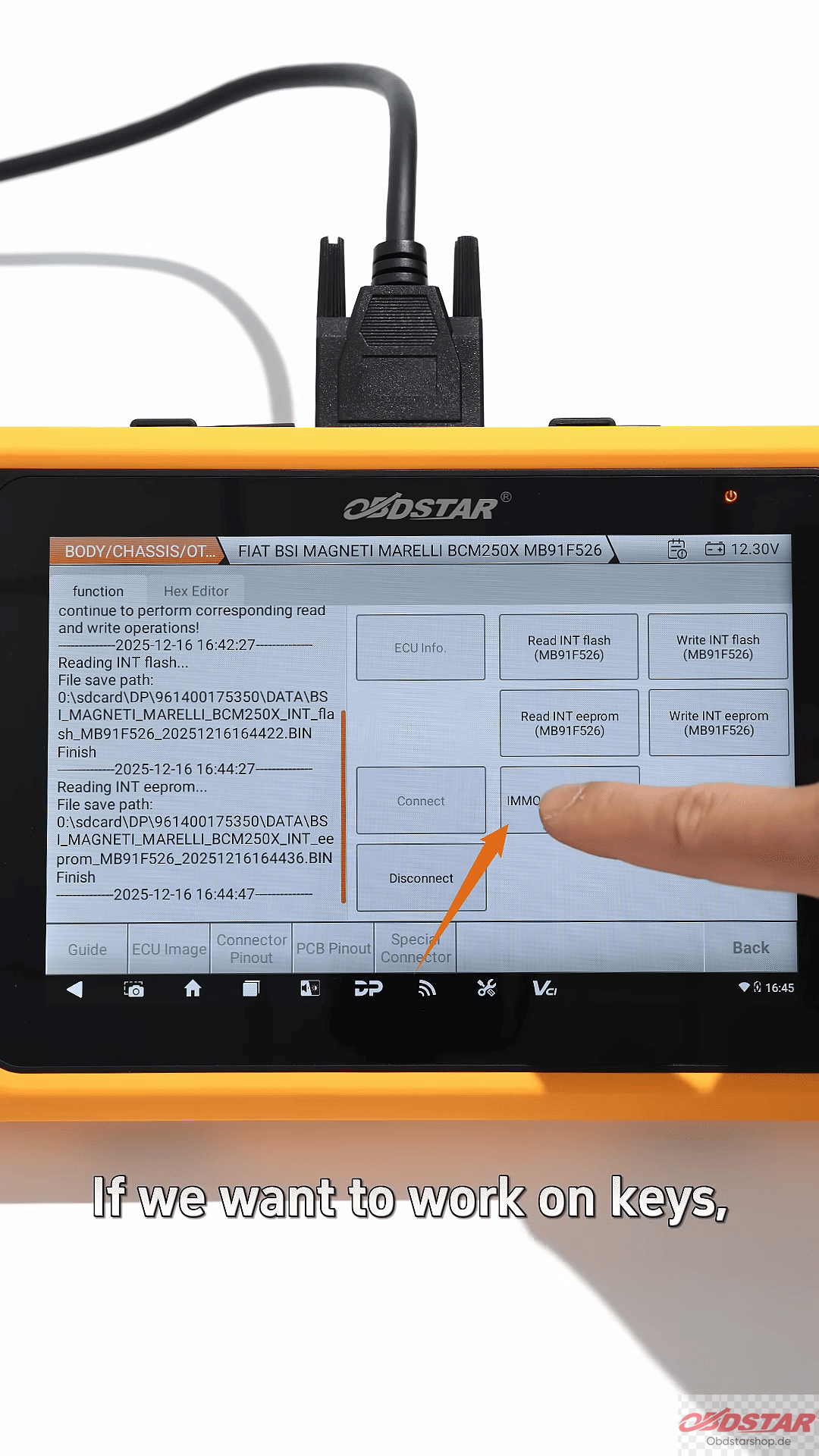

If you need to work on key programming, enter Immobilizer Data Decryption.

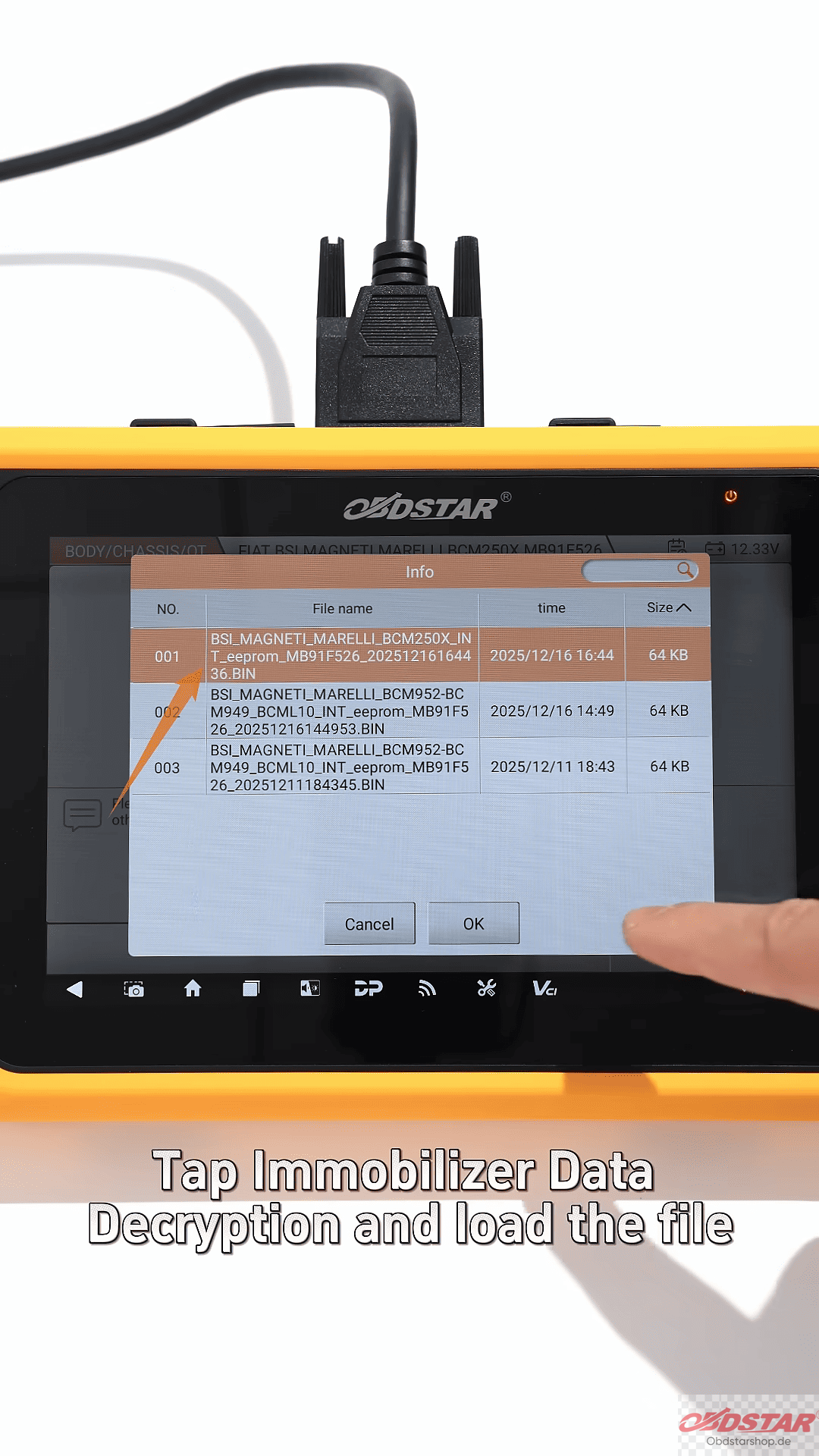

Load the file that was just read from the vehicle.
Confirm to load the immobilizer data.
Step 7: Extract Vehicle Information and Key IDs

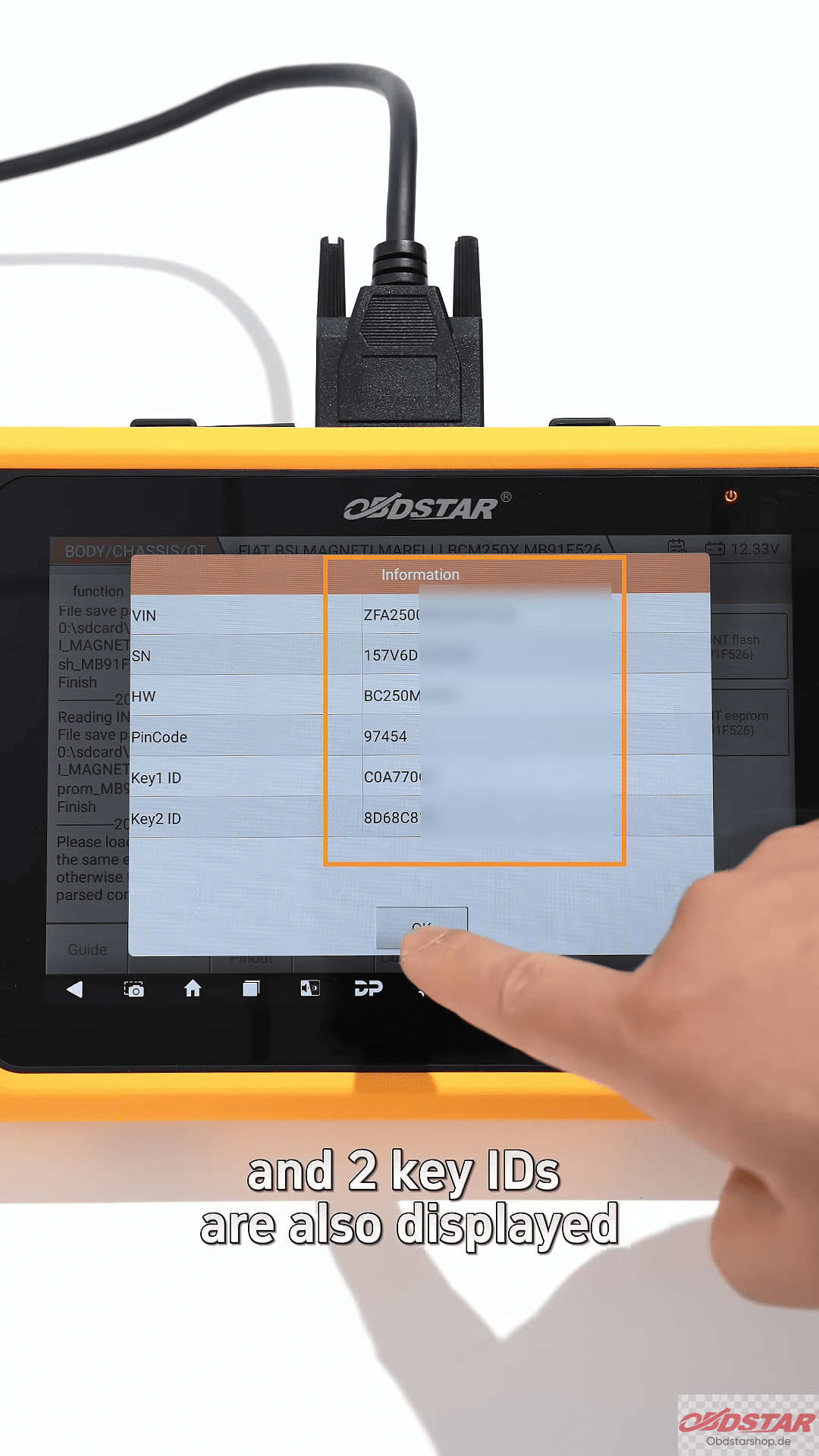

After decryption, the Vehicle Identification Number (VIN) and two key IDs will be displayed.
These details are now ready to generate dealer keys for the vehicle.
Conclusion
Cloning the BCM and programming keys for the 2023 Fiat Ducato using OBDSTAR X300 Classic G3 is an efficient and cost-effective method for technicians and locksmiths. By following these steps, you can easily clone a second-hand BCM, write the necessary data, and program keys based on the decrypted immobilizer data.
