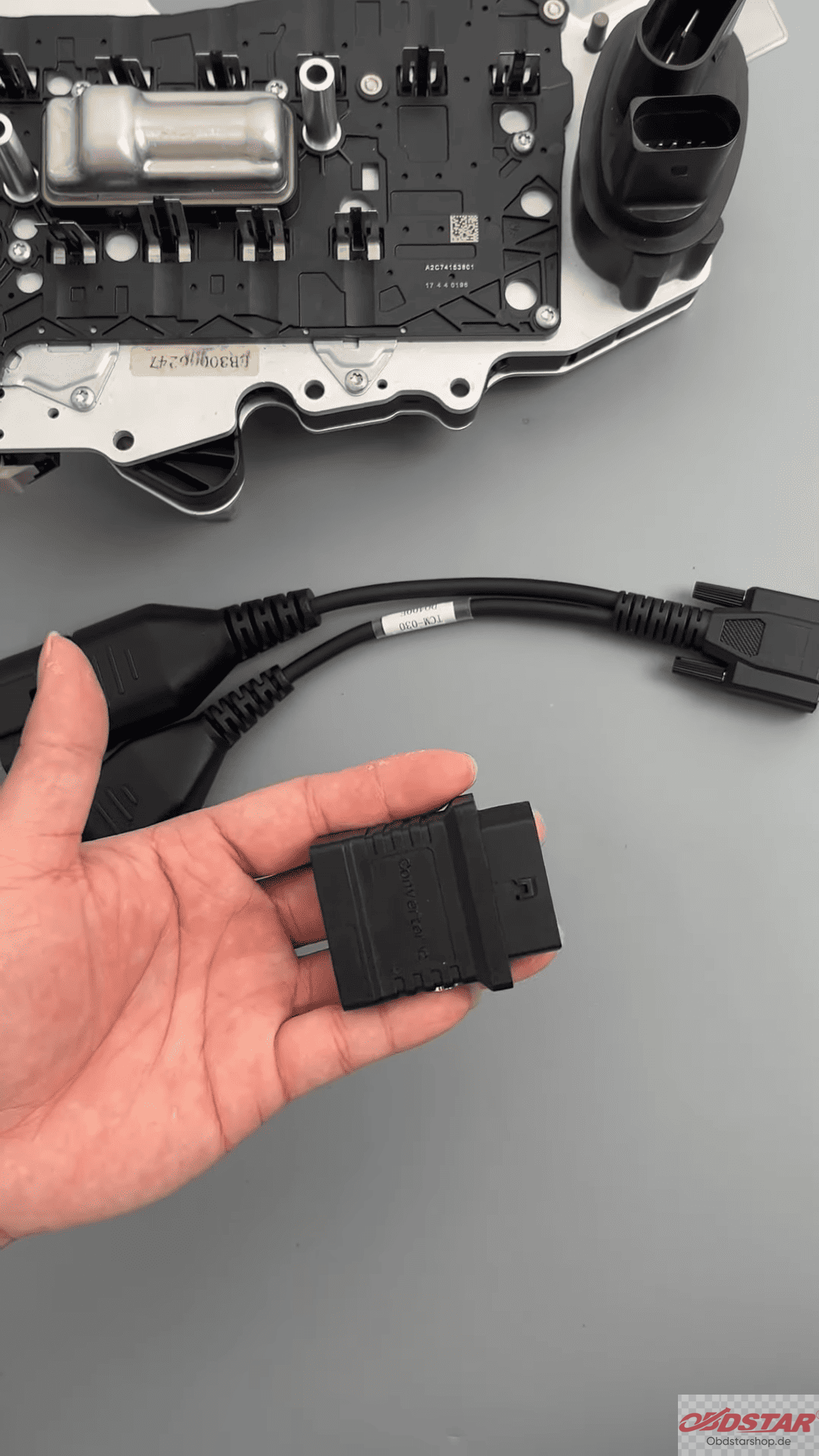

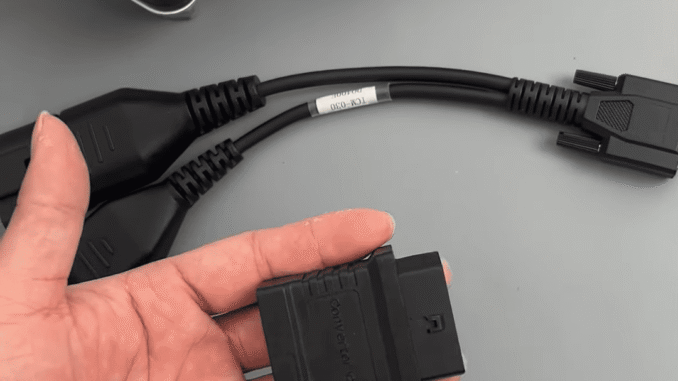

Many friends are are asking what this OBDSTAR Converter V2 Adapter that comes with the transmision dedicated connectors used for?
In shorts, Adapter Converter V2 transforms a dedicated transmission connector into a functional test platform, allowing technicians to power up, diagnose, and communicate with a transmission control module (TCM) outside the vehicle.
Why Use Adapter Converter V2?
Modern transmission control modules are expensive and complex electronic units. When troubleshooting a gearbox issue, technicians often need to verify whether the fault is inside the TCM itself or elsewhere in the vehicle.
The Adapter-Converter V2 provides a convenient way to test the module directly on the workbench without reinstalling it in the vehicle.
Main advantages include:
- Bench diagnostics for transmission ECUs
- Quick communication testing with diagnostic tools

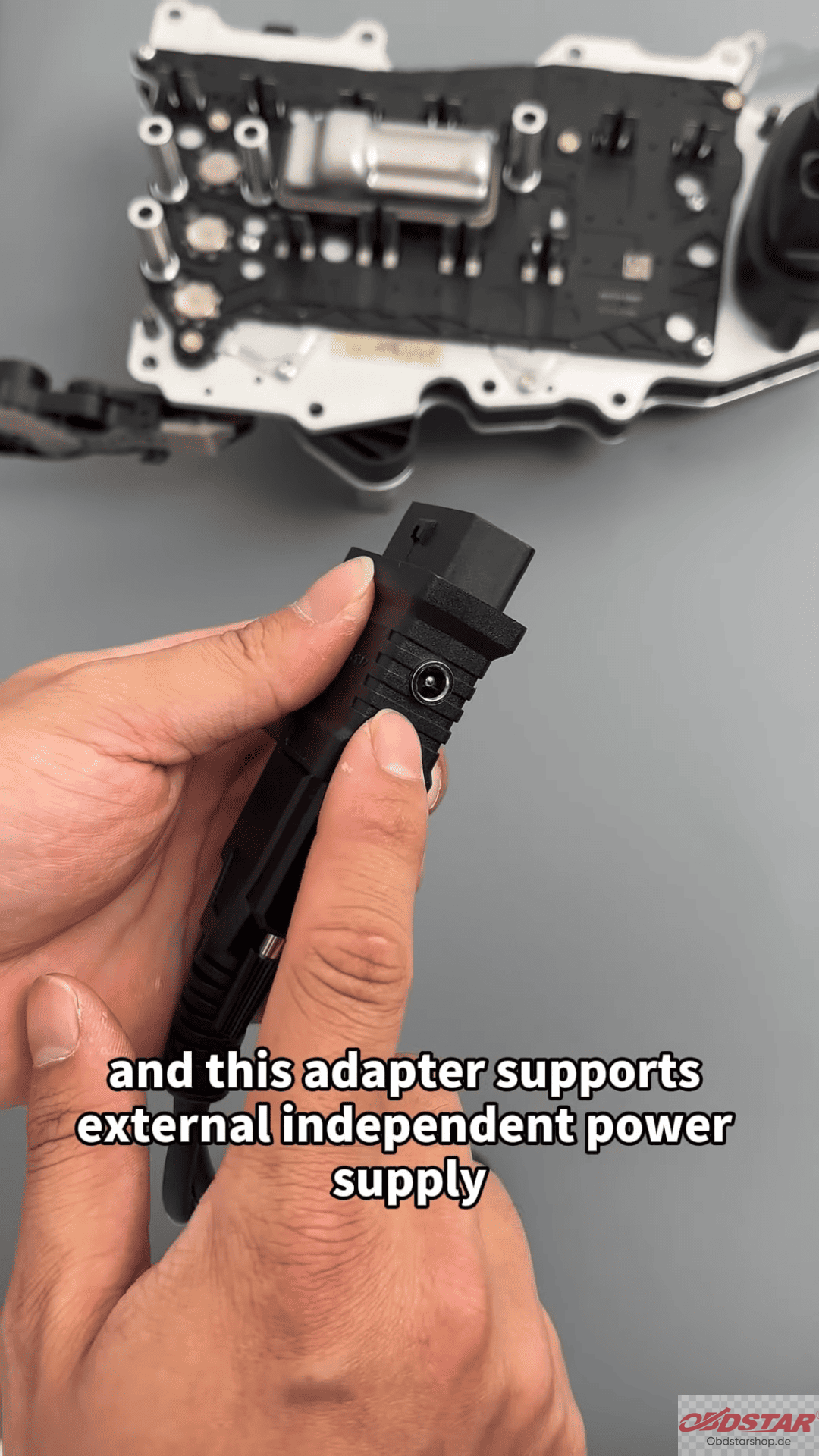

- External 12V power supply support
- It is compatible with OBDSTAR X300 G3, DC706
- With Converter V2 can be compatible with third-party diagnostic devices.
How It Works

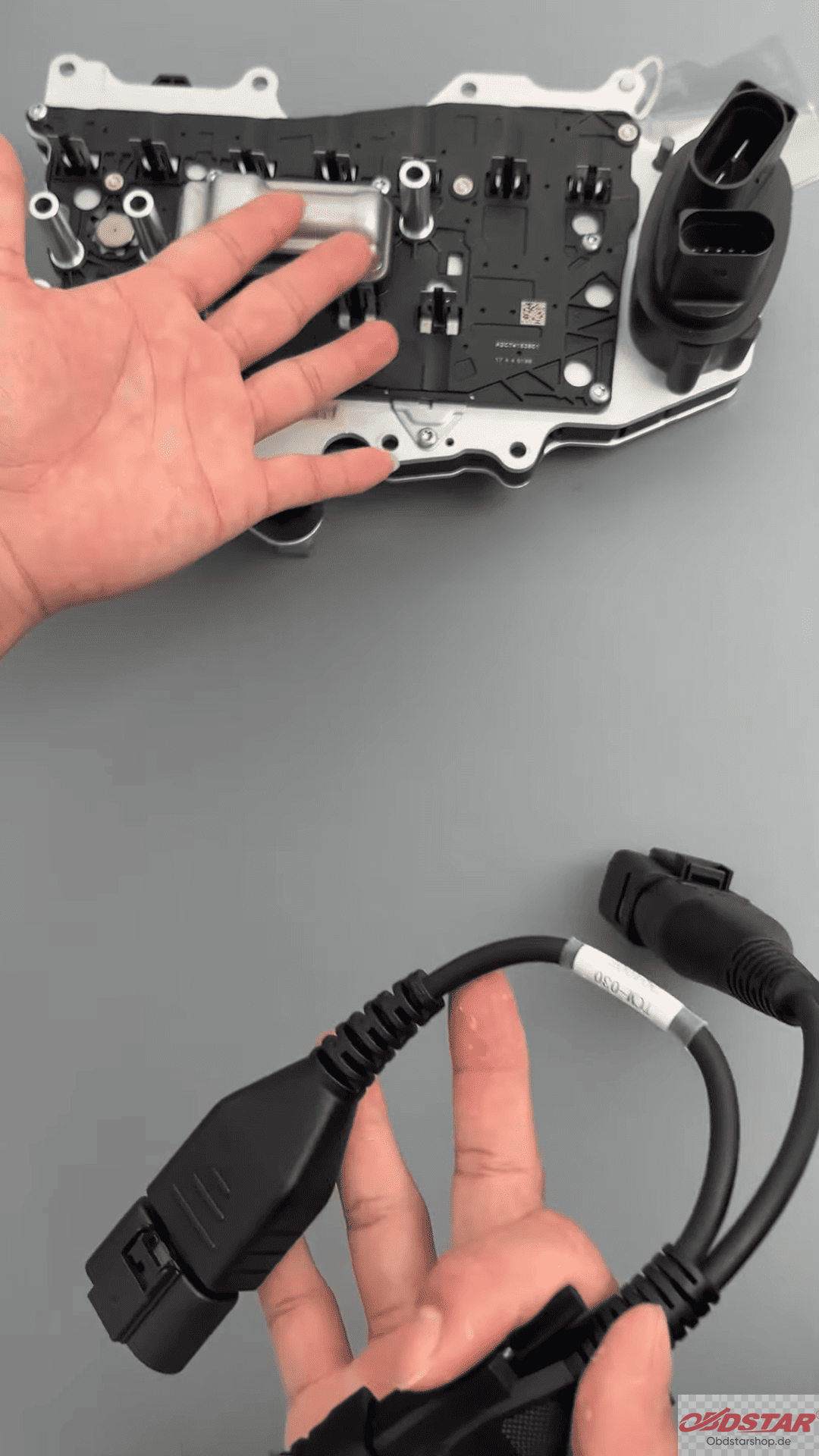

The adapter is designed to work together with transmission-specific connectors.

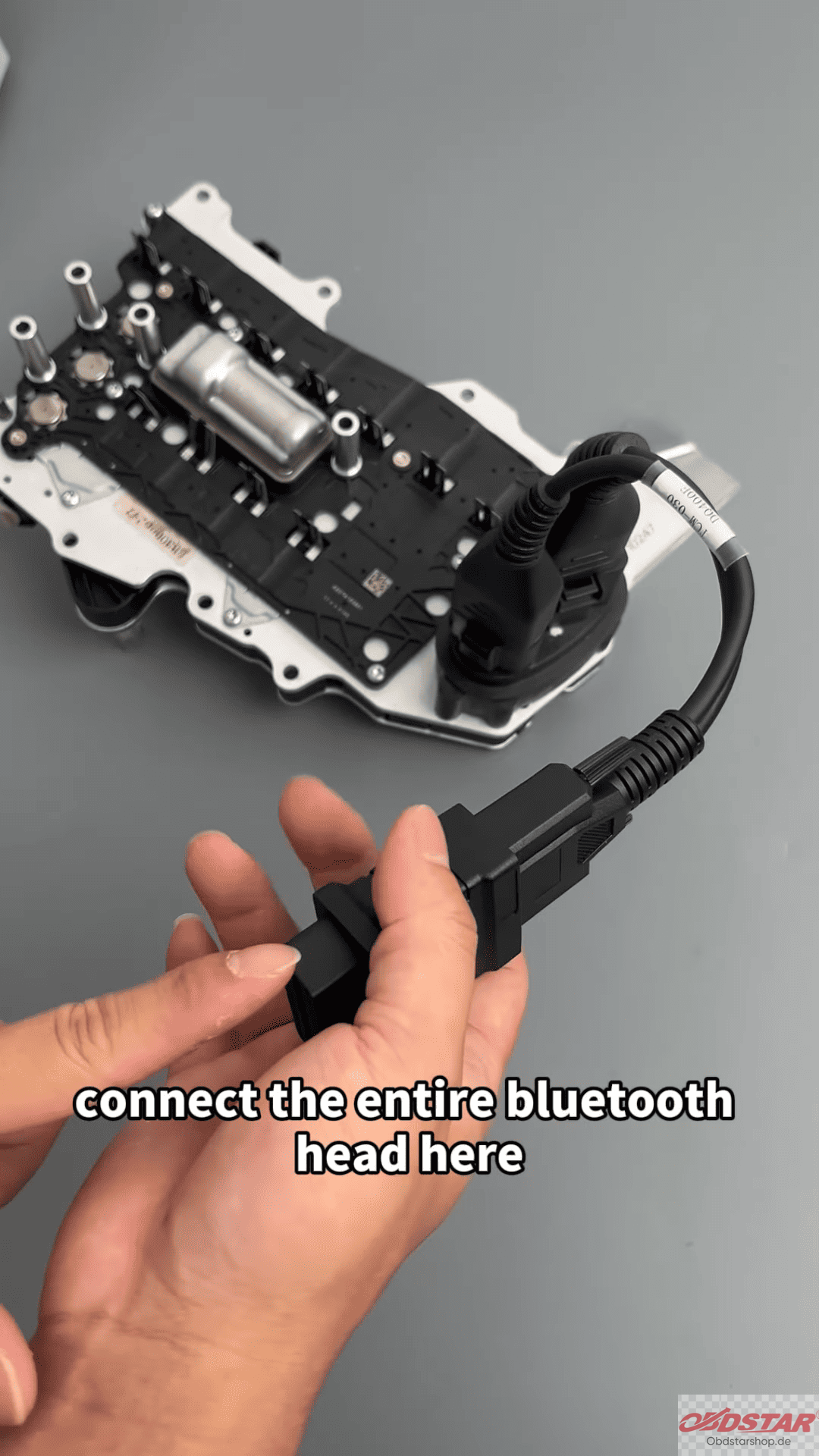

After connecting the TCM dedicated connector to Converter V2, the module can be powered using an external 12V power supply. A Bluetooth VCI or diagnostic interface can then be connected to establish communication with the ECU.
This setup effectively creates a portable test platform that allows technicians to perform diagnostic procedures directly on the bench.
Practical Example
In the demonstration, a Volkswagen DQ400D transmission ECU was connected through the adapter.

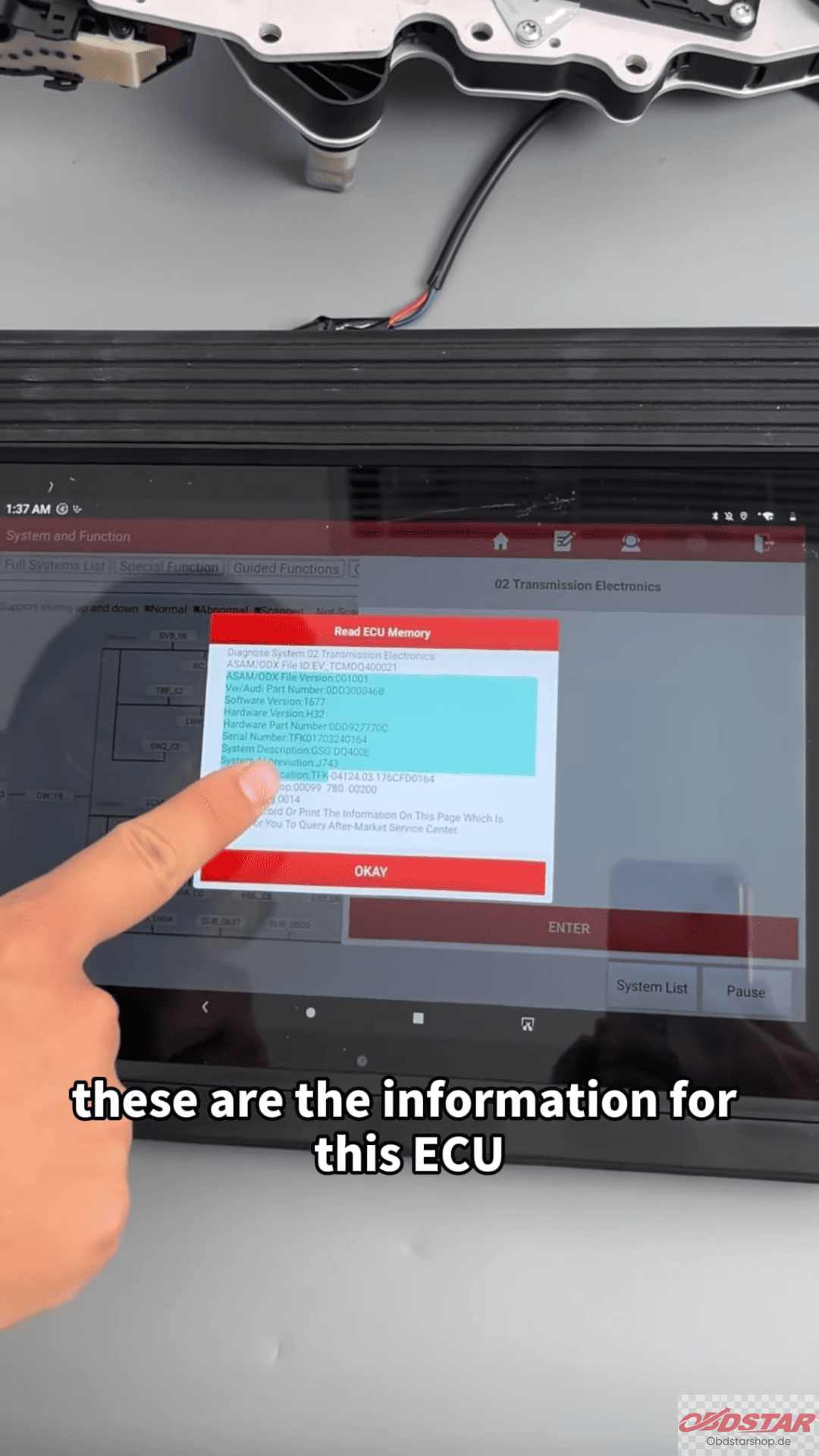

After supplying power and entering the diagnostic system, the technician was able to successfully read ECU information and access available diagnostic functions.
The system displayed key module information, including:
- Transmission ECU identification
- Vehicle-related data
- Stored operational information
- Mileage data
- Diagnostic functions supported by the module
OBDSTAR Adapter Converter V2 is more than just a simple connector. By converting transmission-specific wiring harnesses into a bench test platform, it allows technicians to diagnose and evaluate transmission ECUs safely and efficiently.
