This post demonstrates how to disassemble HFM module and read PIN code on a 2021- Mitsubishi Outlander with MP001 Programmer set
What we’ll need:
KeyMaster G3
High-power DC regulated power supply
Main cable
MP001 Programmer
RH850/ V850 adapter kit
HFM (EB30001043)

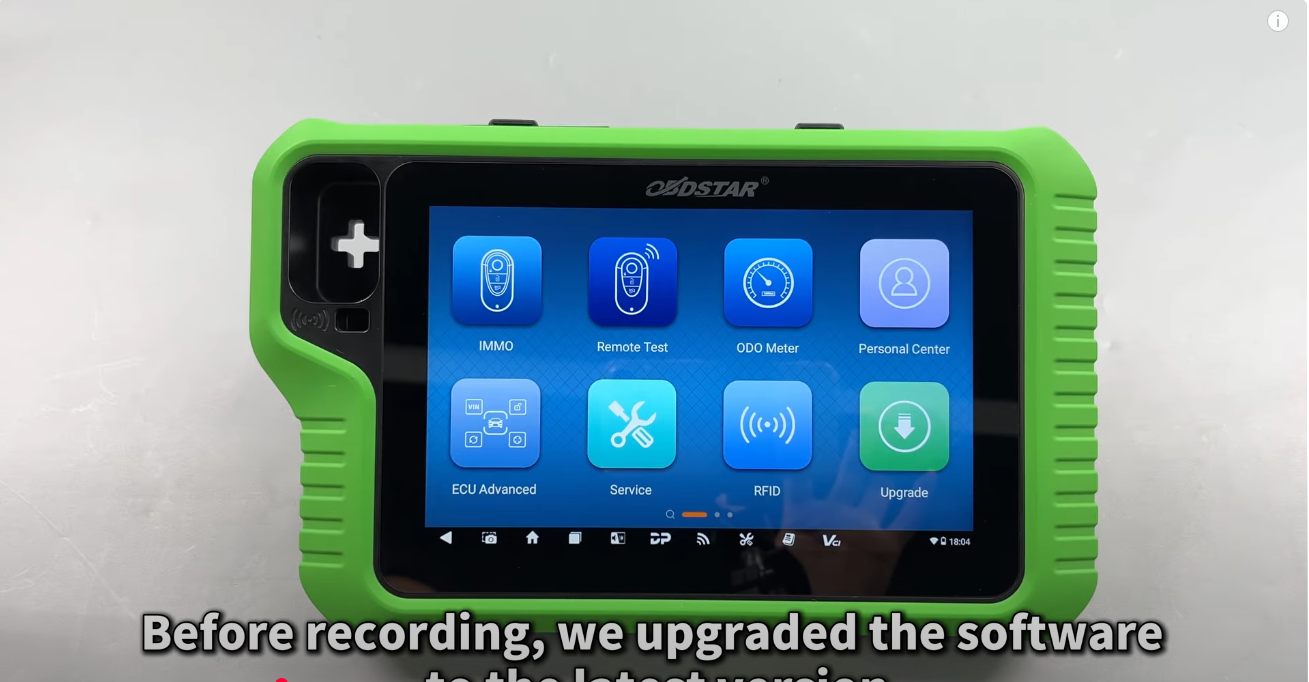

PS: Before recording, ensure that the software are the lastest version
Steps overview
select [IMMO]->>[Manual Select Model]->>[CHINA]->>[OUTLANDER]->> [PROXIMITY]->>[2021]->>[Read PinCode]->>[Pinout]->>connect the cables->>[Guide]

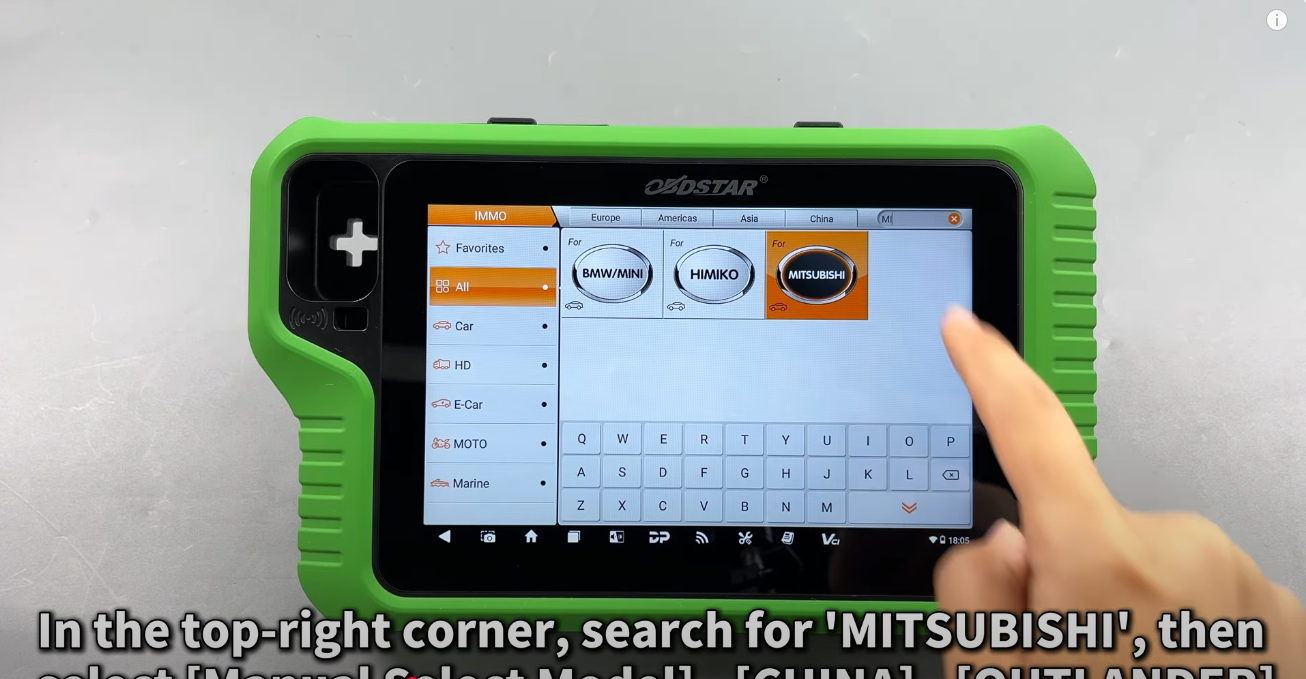

In the top-right corner, serch for ‘MITSUBISHI’, then select [Manual Select Model]-[CHINA]-[OUTLANDER]

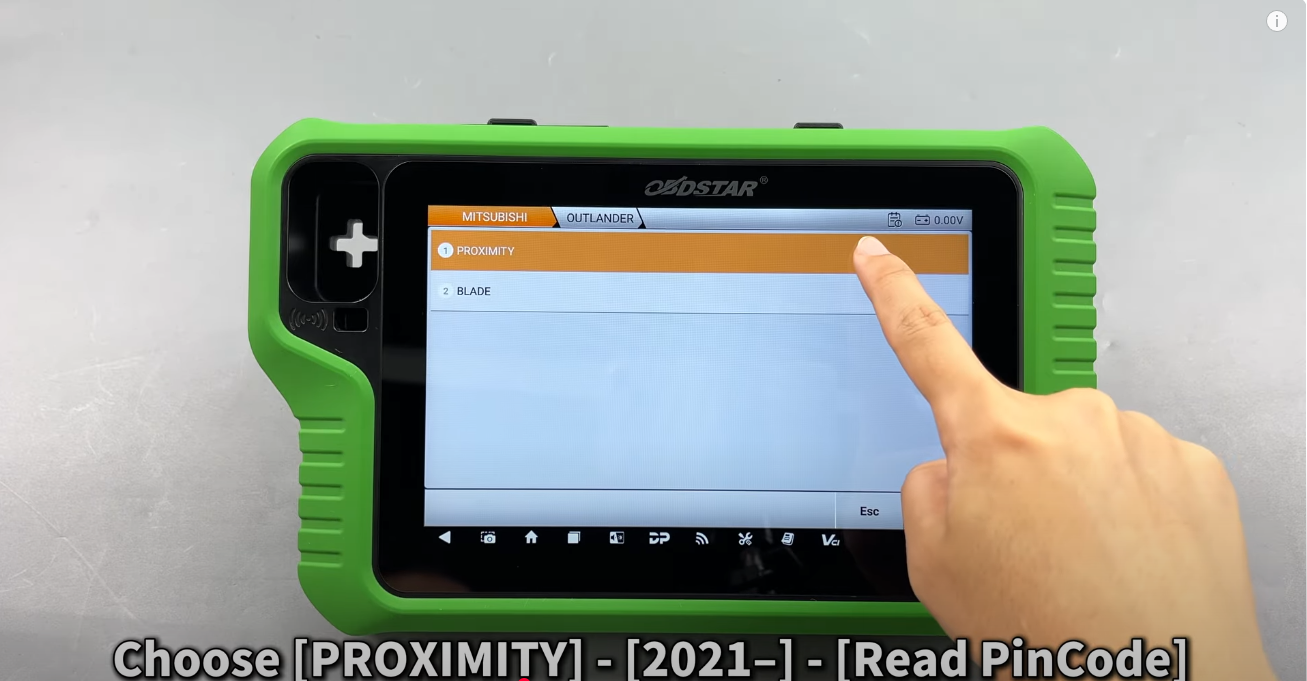

Choose [PROXIMITY]-[2021]-[Read PinCode]

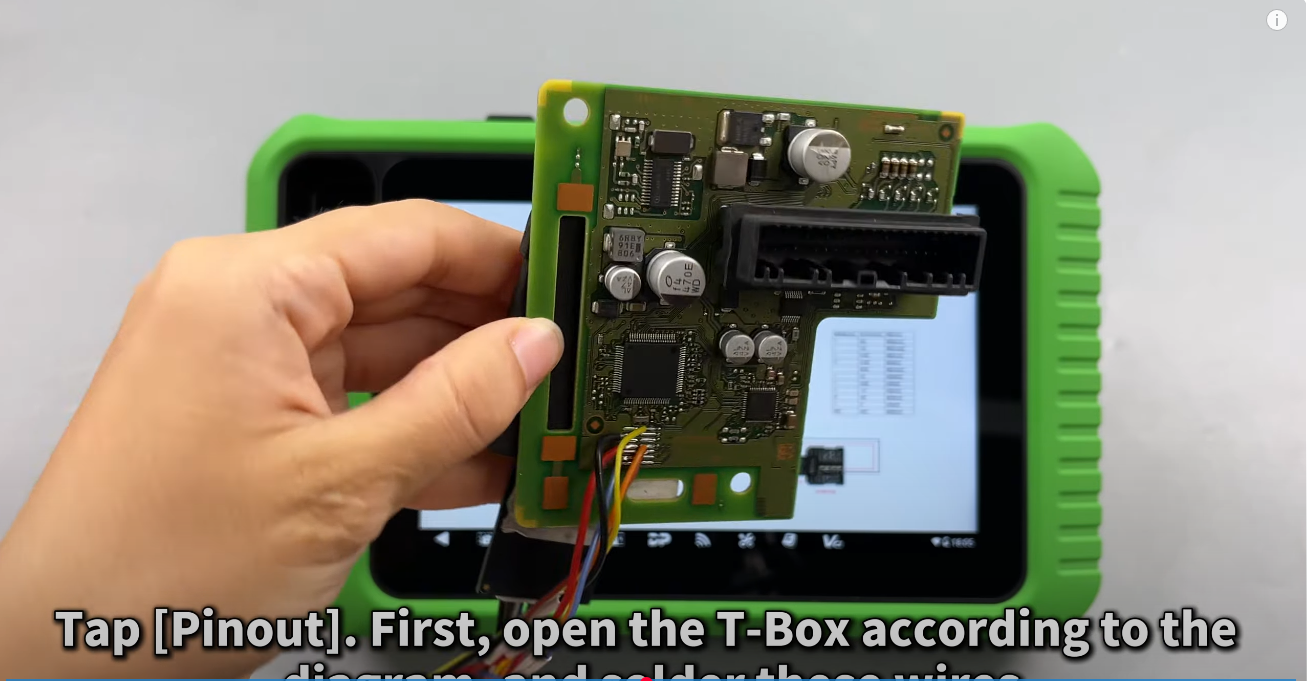

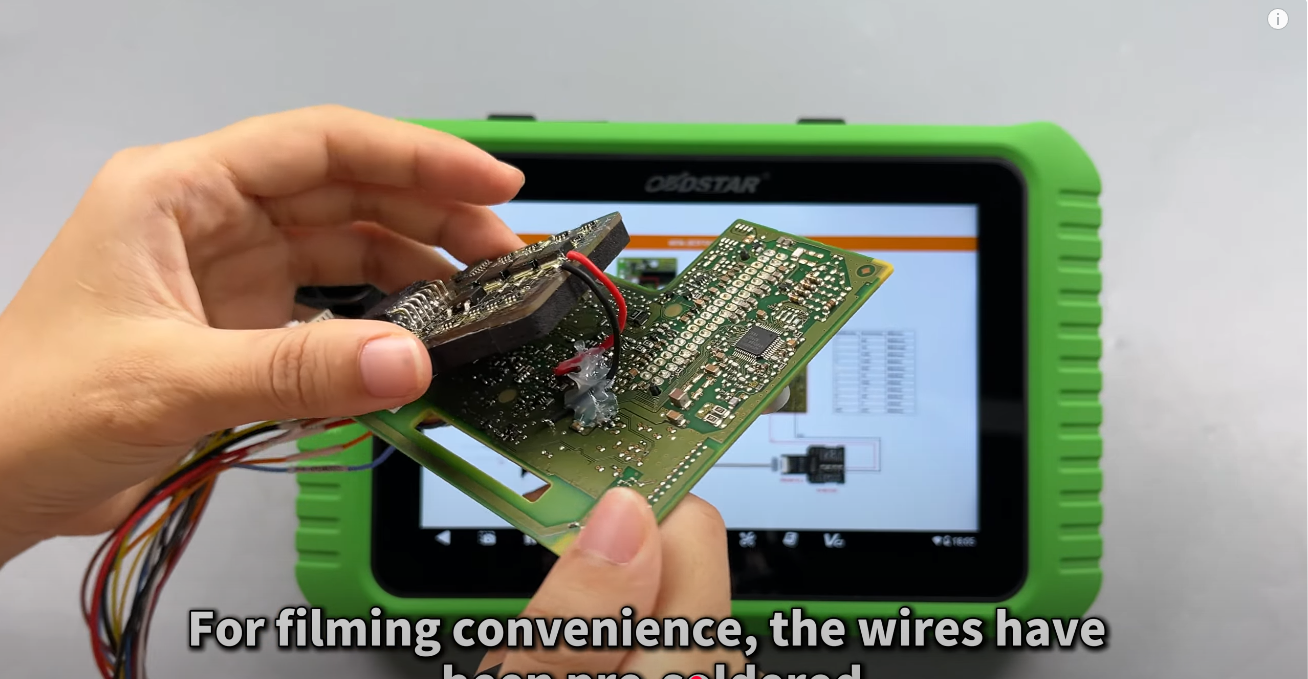

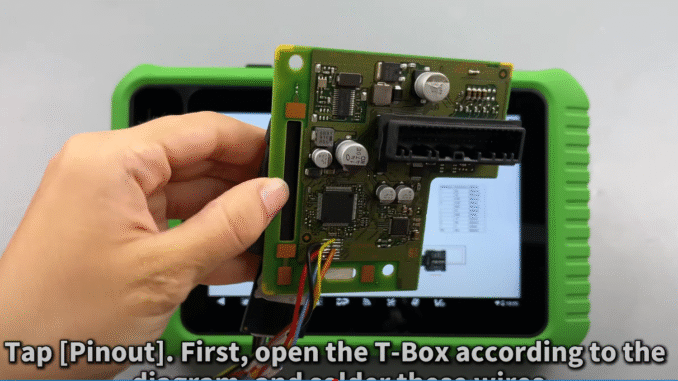

Tap[Pinout]. First, open the T-Box according to the diagram, and solder these wires. For filming convenience, the wires have been pre-soldered
Note: You must use the oringinal decryption cable, and do not modify its length, to avoid connection failure

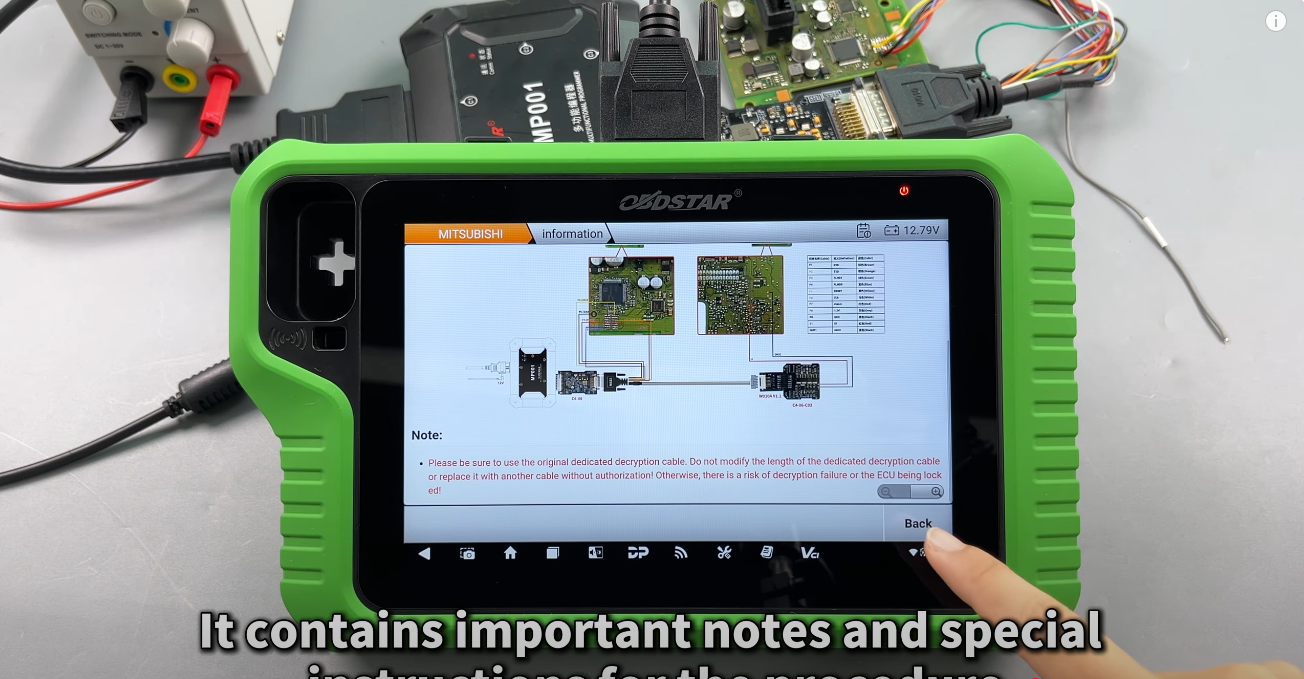

Connect the cables and Tap [Guide], it contains important notes and special instruction for the procedure

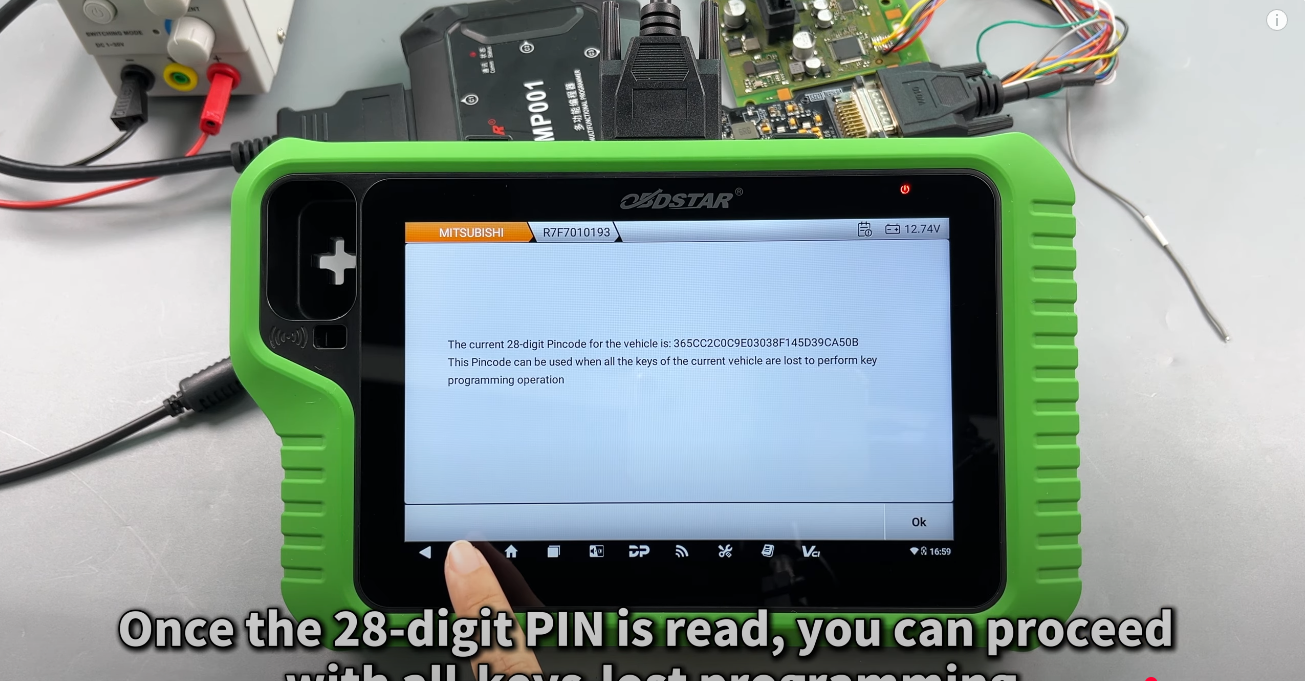

Once the 28-digit PIN is read, you can proceed with all-keys-lost programming

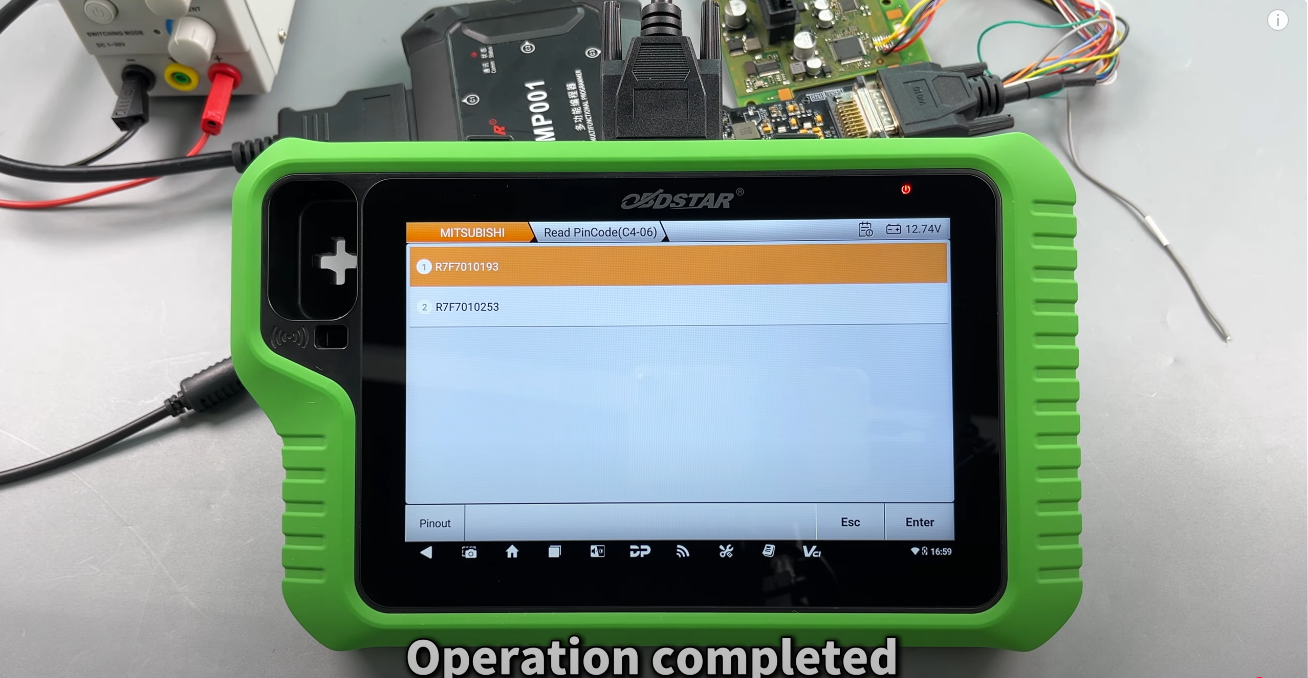

Operation completed
